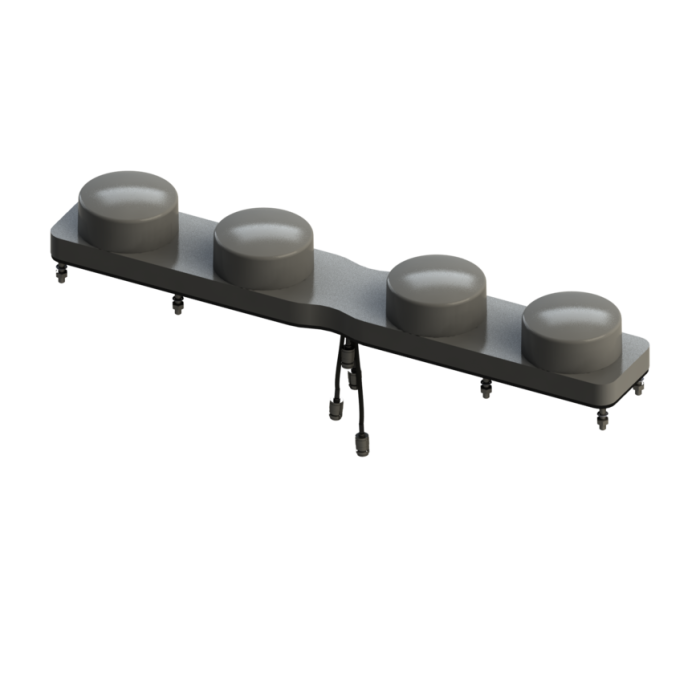

X-Plecs-TOP 120 AMR 900-B FRMCS -2-
-
Apparaat :
Antenne
-
Operating Temperatuur :
-60°C/+85°C
X-Plecs-TOP 120 AMR 900-B FRMCS -2-
Neem contact met ons op voor de levertijd
Specificaties
-
Belangrijkste eigenschappen
| Kenmerken | Multiband-Train Antenna System with certification / approval according to train standard EN 50155 for mounting on trains and vehicles |
|---|
-
Poorten & Interfaces
| Apparaat | Antenne |
|---|
| mobiel netwerk | GSM-R, FRMCS |
|---|
| Externe I/O | RF-Port: 1
Spectrum: GSM-R
RF-Connection: 400mm OmProCab-5 with N(f)
RF-Port: 3
Spectrum: FRMCS
RF-Connection: 180mm OmProCab-5 with N(f)
RF-Port: 5
Spectrum: GNSS
RF-Connection: 220mm OmProCab-5 with N(f)
RF-Port: 4
Spectrum: FRMCS
RF-Connection: 220mm OmProCab-5 with N(f)
RF-Port: 2
Spectrum: GSM-R
RF-Connection: 440mm OmProCab-5 with N(f) |
|---|
-
Mechanische specificaties
| Type behuizing | Plastic case UV-resistance,
dustproof IP6X & waterproof IPX6/IPX9K |
|---|
| Afmetingen | 82mm (H) x 750mm (W) x 120mm (D) |
|---|
-
Product eigenschappen
-
Electrische specificaties
| Input range | 3v~5V at inner conductor |
|---|
| Power consumption | 33mA typ. at 3V<br>38mA typ. at 5V |
|---|
-
Omgeving specificatie
| Operating Temperatuur | -60°C/+85°C |
|---|
-
Certificeringen
| certificaten | Confirmity
EN 50155, EN 50122, EN 50124, IEC 60068, IEC 61373,
ISO 20653, ISO 9227, EN 45545-2, ECE R 118
2014/30/EU; 2006/28/EC; 2002/95/EC
|
|---|
-
Generieke data
|
