Fully manageable over Web Interface or Telnet
Fanless operation
Copper or mixed Copper/Fiber versions
DIN-Rail / Flange mount
Wide input 5-36VDC
Versions for -40°C to +85°C environment
Ports et interfaces
Interface LAN
8
Jumbo frame
up to 10k Byte
Spécifications électriques
plage d'entrée
5VDC - 36VDC Input range
Spécification environnementale
température de stockage
-45°C up to +85°C
température de fonctionnement
-20°C/+60°C
humidité relative
5% to 95% non condensing
Certificats
normes
The MAGBES is designed to meet or even exceed the most common standard Particular references are: EMC EN 55022, EN 55024, EN 61000, MIL-STD-461E Shock & Vibration EN 60068 Environmental & Safety EN 50155, MIL-STD-810-F, EN 60601, EN 60950 Approval List CE, IEC 60945, IACS E10 The MAGBES family has been successfully tested according EN50155, MIL-STD-810-G as well as CE marking
Données GENERALES
Fabricant
MPL
Garantie
36 Maanden
Options de commande

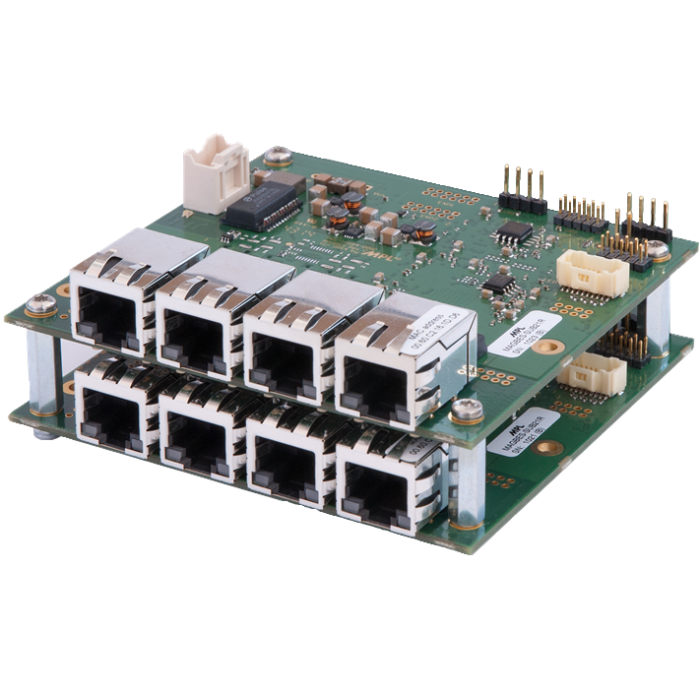

MAGBES-211H Open frame 8 port Manageable Gigabit Ethernet Switch in PC/104 format factor with power connector (5 -36VDC). 8 copper ports on eigth 2mm lockable header. MAGBES-212H Open frame 8 port Manageable Gigabit Ethernet Switch in PC/104 format factor with power connector (5 -36VDC). 6 x copper ports on 2mm lockable header and 2 x fiber ports ( 2 x SFP cage) The SFP Module is not an integrated part of the module and need to be ordered separately. Magbes-222H Open frame 8 port Manageable Gigabit Ethernet Switch in PC/104 format factor with power connector (5 -36VDC). 4 x copper ports on 2mm lockable header and 4 x fiber ports ( 2 x SFP cage) The SFP Module is not an integrated part of the module and need to be ordered separately. MAGBES -2xCy - variation from the above e.g. horizontal connectors instead of vertical locking headers - Depopulated versions.
