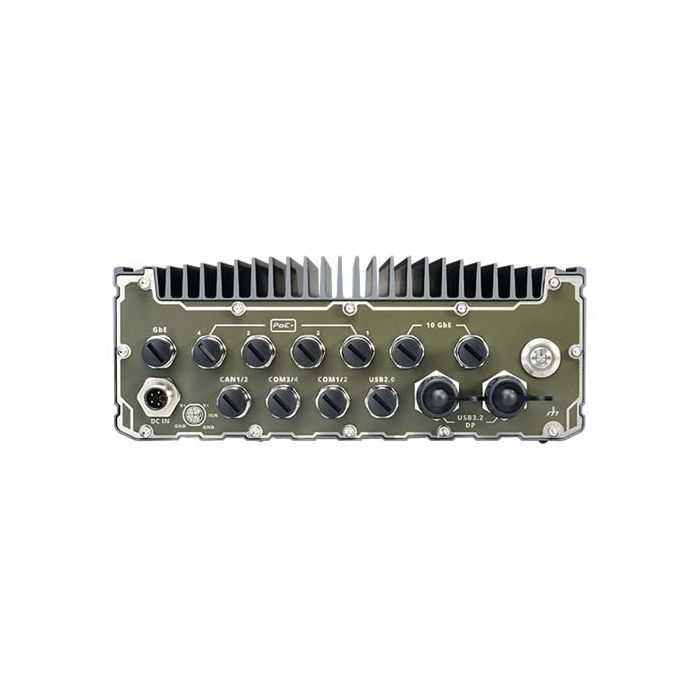

SEMIL-2000 is an extreme-rugged embedded platform with IP69K dustproof and waterproof design in a 2U 19"/2 rack-mount form factor. SEMIL2000GC features Neousys' best-in-class thermal design to ensure fanless operation from -40°C to 70°C wide-range temperatures, two 5Gbps Type-C ports with alternative DisplayPort signal outputs.
SEMIL-2000 is powered by Intel’s 14th/ 13th/ 12th-Gen platform. The platform benefits from Intel® 7 photolithography, the latest Core™ desktop processors come with a hybrid configuration consisting of performance and efficient cores, and it can support up to 64GB DDR5 memory.
The system adopts a corrosion-proof stainless steel and aluminum chassis to counteract moisture and salinity. Utilizing all M12 connectors to guarantee extreme-rugged connection in shock and vibration environments, it offers a variety of I/O connectivity, two CAN bus 2.0 with SocketCAN driver, two USB 3.2, seven Ethernet (including two 10GbE), and four 802.3at PoE+ ports to supply 25.5W of power per port to connected compatible devices. Internal expansion-wise, it has an M.2 M-key socket to support NVMe SSD and mini-PCIe sockets for extending feature sets. Additionally, SEMIL-2000 features two 2.5" SATA SDD/ HDD accommodation, 8-48V wide-range DC input with ignition power control, and it is in compliance with MIL-STD-810H standards.
CPU dependent Integrated Intel® UHD graphics 770 (32EU)/ 730 (24EU)
Belangrijkste eigenschappen
Kenmerken
• IP69K waterproof computer
• -40°C to 70°C wide-temperature fanless operation
• 2x 10GbE, 1x GbE, and 4x 2.5GbE PoE+ via M12 X-coded connectors
• 2x SocketCAN and 2x USB3.2 Gen1 Type-C w/ DP alternative mode
• 8 to 48V wide-range DC input with reverse polarity protection and built-in ignition power control
• MIL-STD-810H compliant
Uitbreidingsmogelijkheden
Uitbreiding slots
M.2
1x M.2 2242/3052 B key socket with dual SIM slot for M.2 5G/ 4G module
1x M.2 2230 E key socket for Wi-Fi
Mini PCIe
3x full-size mini PCI Express socket with SIM slot
Poorten & Interfaces
LAN poorten
7
Seriele poorten
4
USB 2.0 poorten
2
USB 3.x poorten
2
Externe I/O
Ethernet Ports
2x 10GbE Ethernet by X550-AT2 (with WoL) (M12 X-coded)
4x 2.5GbE Ethernet by Intel I226-IT (PoE+) (M12 X-coded)
1x GbE Ethernet by Intel I219-LM (with WoL) (M12 X-coded)
USB
2x Type-C USB 3.2 Gen1x1 (5Gbps) ports (shared DisplayPort)
2x USB 2.0 ports (M12 A-coded)
Serial Port
2x isolated 3-wire RS-232 ports (COM1/ COM2)
1x isolated 3-wire RS232 (COM3) & 1x RS-422/ 485 port (COM4)
CAN
2x isolated CAN 2.0 port, supporting SocketCAN in Linux
Interne I/O
M.2
1x M.2 2242/3052 B key socket with dual SIM slot for M.2 5G/ 4G module
1x M.2 2230 E key socket for Wi-Fi
Mini PCIe
3x full-size mini PCI Express socket with SIM slot
PoE beschikbaar
Ja
POE vermogen
PoE Capability
4x IEEE 802.3at PoE+ PSE with 100 W total power budget
Opslag
RAID
0, 1
Opslag interface
SATA
2x Internal SATA port for 2.5” HDD/ SSD installation, supporting RAID 0/ 1
M.2
1x M.2 2280 M key NVMe socket (PCIe Gen4x4) for NVMe SSD
Mechanische specificaties
Type behuizing
Wallmount
Afmetingen
220mm (W) x 310mm (D) x 90.5mm (H)
Montage
Rack-mounting (optional) and wall-mounting (standard)
Product eigenschappen
Gewicht
6 kg
Electrische specificaties
Input range
8V to 48V DC input, with reverse polarity protection (M12 L-coded)
Ignition control
Built-in ignition power control (IGN/ GND signal via M12 L-coded connector)
Omgeving specificatie
Opslag temperatuur
-40°C/+85°C
Operating Temperatuur
-40°C/+70°C
Relatieve luchtvochtigheid
10%~90% , non-condensing
Certificeringen
certificaten
IP Rating
IP69K
Vibration
MIL-STD-810H, 514.8C-IV. Category 4
Shock
MIL-STD-810H, 516.8 Procedure I
EMC
EN 50121 (EN 50155 EMC)
CE/FCC Class A, according to EN 55032 & EN 55024
