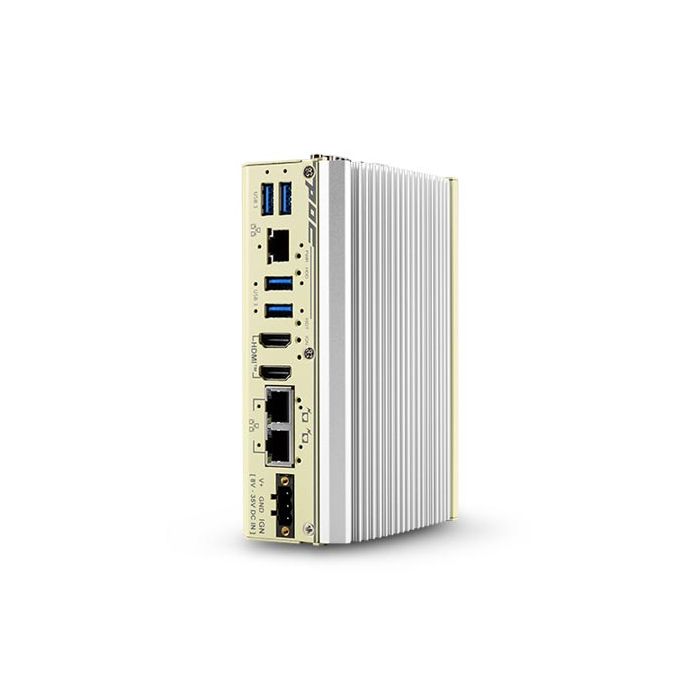

main product photo

Atom x7425E 2.5GbE 2x2.5PoE+ 4xUSB3.2 2xHDMI MezIO 8V-35VDC

SKU:

POC-600

SKU : POC-600
Processor : Intel Atom
Max geheugen : 16GB
Operating Temperatuur : -25°C/+70°C

Atom x7425E 2.5GbE 2x2.5PoE+ 4xUSB3.2 2xHDMI MezIO 8V-35VDC

Neem contact met ons op voor de levertijd

Voeg toe aan vergelijking

Details

Specificaties

Specificaties

Processor

Processor Intel Atom
Processor serie Alder Lake-N
Basisfrequentie 1.5GHz /3.4GHz
Aantal cores 4
TDP 12W
chipset SoC
Geheugen

Geheugentype DDR5 SO-Dimm
Geheugenslots 1
Max geheugen 16GB

Video

Aansluitingen	HDMI™ Port 2x HDMI™ 1.4b Port, support up to 3840x2160
Chipset	Integrated Intel® UHD Graphics, with 24EUs

Belangrijkste eigenschappen

Kenmerken	Features • Intel® Atom® x7425E Processor, 12W with 4 E-Cores • Up to 16GB DDR5-4800 SODIMM • 2x 2.5GbE PoE+ Port, 1x GbE Port with Screw-Lock • 2x USB3.2 Gen2, 2x USB3.2 Gen1, with Screw-Lock, MezIO compatible® • Dual HDMI™ Display Output, supporting 3840x2160 • Front I/O access and DIN-Rail mount • -25°C/+70°C fanless operating temperature range • 8V-35V wide DC input

Uitbreidingsmogelijkheden

Uitbreiding slots Expandable I/O
1x MezIO® expansion Interface for MezIO® modules

Poorten & Interfaces

LAN poorten	3
Seriele poorten	4
USB 3.x poorten	4
Audio interface	1x 3.5mm Audio Input/Output
Externe I/O	Ethernet Ports 2x 2.5GbE PoE+ Ports, i226-IT, Power budget: Port #2 & #3 total budget of 50W USB Ports 2x USB3.2 Gen2, Type-A, Screw-Lock 2x USB3.2 Gen1, Type-A, Screw-Lock Serial Ports 1x RS-232/422/485 (COM1), software programmable 3x 3-wire RS-232 (COM2/3/4) or RS-422/485 (COM2) Audio 1x 3.5mm Audio Input/Output
PoE beschikbaar	Ja
POE vermogen	PoE Capability 2x 2.5GbE PoE+ Ports, i226-IT, Power budget: Port #2 & #3 total budget of 50W

Opslag

Opslag interface M.2 Slot
1x M.2 2280 Slot (SATA Interface)
Mechanische specificaties

Afmetingen (WxDxH): 56mm x 108mm x 153mm
Montage DIN-Rail Mount (Standard), Wall-Mount (optional)
Product eigenschappen

Gewicht 0.98kg
Electrische specificaties

Input range 8V-35V DC Input
Omgeving specificatie

Opslag temperatuur -40°C/+85°C
Operating Temperatuur -25°C/+70°C
Relatieve luchtvochtigheid 10%-90%, non-condensing

Certificeringen

certificaten	Vibration MIL-STD-810H, Method 514.6, Category 4 Shock MNIL-STD-810H, Method 516.6, Procedure I EMC CE/FCC Class A, according to EN 55032 & EN 55035

Prijs op aanvraag
