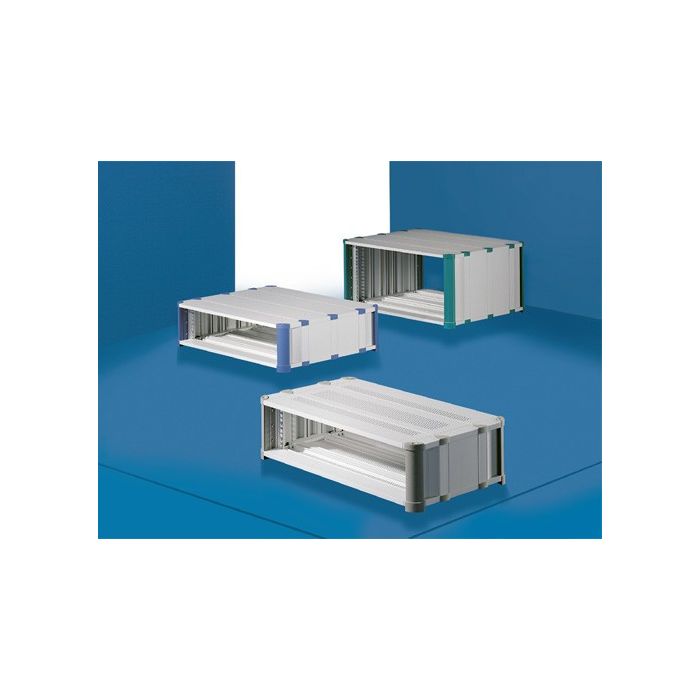

HeiCase solid RAL5012 7U/19"/540mm
Neem contact met ons op voor de levertijd
Details
Specificaties
Downloads
Specificaties
-
Product eigenschappen
| Type product | HeiCase |
|---|
| Product groep | HeiCase 482,6 mm (19'') |
|---|
| Breedte mm | 482,6 mm (19") |
|---|
| Diepte zijkant paneel | 540 mm |
|---|
| Gat voor handvat | Nee |
|---|
| Algemene productinformatie | Technical specifications:
Depth: 300 mm, 420mm, 540 mm
nstallation width: 482,6 mm (19 ̋ )
Installation options: 482,6 mm (19 ̋ )-slide-in equipment to IEC 60 297-3
Protection category:
P 42 for unvented version
Supply includes:
2 side panels
2 covers
8 corner caps
8/12/16 cover caps (300/420/540 mm depth)
4 19" mounting brackets
4 threaded inserts
2 plain inserts
Cases are supplied preassembled
Note:
For rear installation, order back panel/door separately.
Colour:RAL 7035 (pale grey)
Decorative colours and corner caps:
RAL 5018 (turquoise)
RAL 5012 (pale blue)
RAL 7030 (stone grey)
Material/surface finish:
Covers:
Extruded aluminium section/die-cast, spray-finished
Side panels: Extruded aluminium section, spray-finished
Corner caps: Plastic
(19 ̋ ) mounting bracket: Extruded aluminium section, clear-chromated
Property rights:
German registered design no. 96 09 457
UK reg. design no. 2064682
US design patents
Des. 402,640 and Des. 423,464
Japan. reg. designs no. 1045507 and 1045508
|
|---|
| Gewicht | 13,76 kg |
|---|
-
