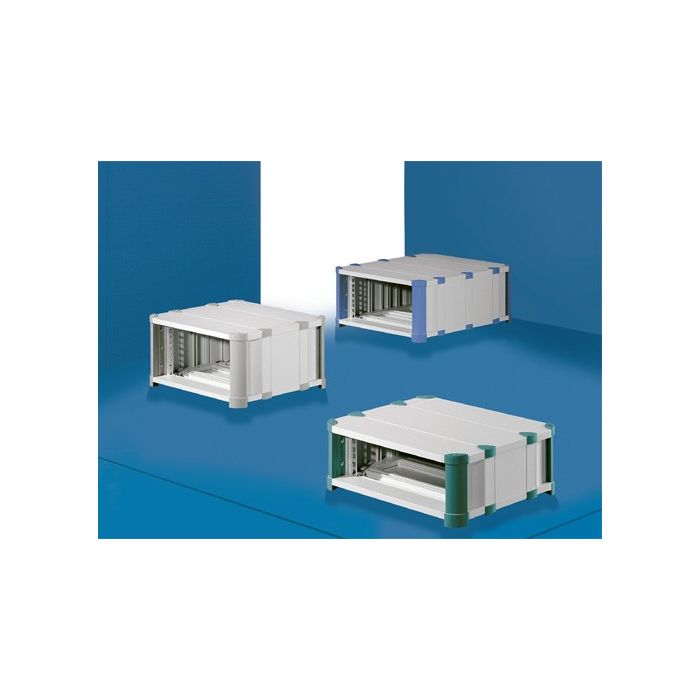

HeiCase Unvented 3U/1/2 19"/420 RAL7030

SKU:
3750304
Fabrikant:
HEITEC AG
Neem contact met ons op voor de levertijd
Details
Specificaties
Downloads
Specificaties
  • Product eigenschappen
    Type productHeiCase
    Product groepHeiCase 269,2 mm (1/2 19'')
    Breedte mm269,2 mm (1/2 19")
    Diepte zijkant paneel420 mm
    Versieunvented
    Gat voor handvatNee
    Algemene productinformatieTechnical specifications:
    • Depth: 300 mm, 420mm, 540 mm
    • Installation width: 269.2 mm (½ 19˝)
    • Installation options: 269.2 mm (½ 19˝)-slide-in equipment to IEC 60 297-3

    Material/surface finish:
    • Covers: Extruded aluminum section/ die-cast, spray-finished
    • Side panels: Extruded aluminum section, spray-finished
    • Corner caps: Plastic 482.6 mm (19˝) mounting
    • bracket: Extruded aluminum section, clear-chromated

    Color:

    RAL 7035 (pale grey)

    Decorative colors and corner caps:
    • RAL 5018 (turquoise)
    • RAL 5012 (pale blue)
    • RAL 7030 (stone grey)

    Protection category:

    IP 42 for unvented version.

    Supply includes:
    • 2 side panels,
    • 2 covers,
    • 8 corner caps,
    • 8/12/16 cover caps (300/420/540 mm depth),
    • 4 482.6 mm (19˝) mounting brackets,
    • 4 threaded inserts,
    • 2 plain inserts,
    • 1 rear panel,
    • Cases are supplied preassembled

    Special sizes and colors available on request.


    Property rights:
    German registered design
    no. 96 09 457
    UK reg. design no. 2064682
    US design patents
    Des. 402,640 and
    Des. 423,464
    Japan. reg. designs
    no. 1045507 and 1045508
    Gewicht6,4 kg
  • Generieke data
    FabrikantHEITEC AG
    Ean code4250558931332
    Garantie12 Maanden
