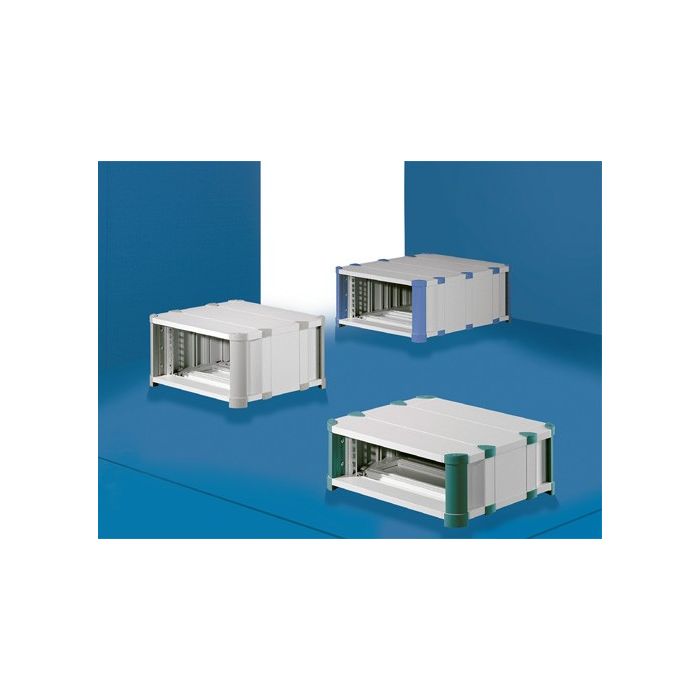

HeiCase vented RAL5018 1U/½19"/420mm

SKU:
3750110
Fabrikant:
HEITEC AG
Neem contact met ons op voor de levertijd
Details
Specificaties
Downloads
Specificaties
  • Product eigenschappen
    Type productHeiCase
    Product groepHeiCase 269,2 mm (1/2 19'')
    Breedte mm269,2 mm (1/2 19")
    Diepte zijkant paneel420 mm
    Versievented
    Gat voor handvatNee
    Algemene productinformatieTechnical specifications:

    Depth: 300 mm, 420mm, 540 mm
    Installation width: 269,2 mm (½ 19 ̋ )
    nstallation options: 269,2 mm (½ 19 ̋ )-slide-in equipment to 60 297-3

    Protection category:

    IP 42 for unvented version

    Supply includes:

    2 side panels
    2 covers
    8 corner caps
    8/12/16 cover caps
    (300/420/540 mm depth)
    4 19" mounting brackets
    4 threaded inserts
    2 plain inserts,1 rear panel
    Cases are supplied preassembled

    Colour:

    RAL 7035 (pale grey)

    Decorative colours and corner caps:

    RAL 5018 (turquoise)
    RAL 5012 (pale blue)
    RAL 7030 (stone grey)

    Material/surface finish:

    Covers: Extruded aluminium section/die-cast, spray-finished
    Side panels: Extruded aluminium section, spray-finished
    Corner caps: Plastic
    (19 ̋ ) mounting bracket: Extruded aluminium section, clear-chromated

    Property rights:

    German registered design no. 96 09 457
    UK reg. design no. 2064682
    US design patents
    Des. 402,640 and Des. 423,464
    Japan. reg. designs no. 1045507 and 1045508
    Gewicht4.5 kg
  • Generieke data
    FabrikantHEITEC AG
