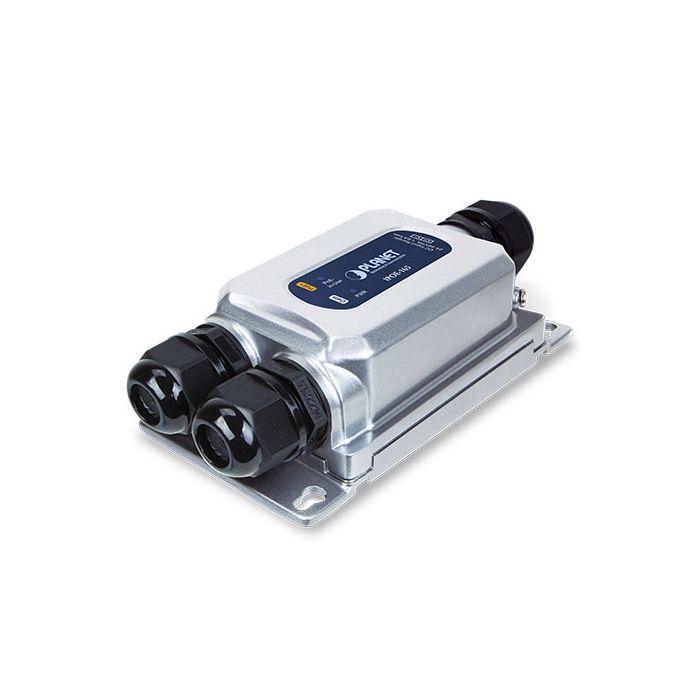

Industrial IP67 1-Port 60W 802.3bt PoE++ Injector

Planet Technology
  • Input range : 24~56V DC
  • Operating Temperatuur : -40°C/+75°C

De IPOE-175 Industriële IP67 Single poort 802.3bt PoE ++ Injector van PLANET Technology levert maximaal 60 watt, waarbij zowel de Gigabit Ethernet-gegevens als 802.3bt PoE-stroom via de UTP-kabel wordt verzonden.

Neem contact met ons op voor de levertijd

Industrial 802.3bt PoE Injector

Ideal for Powered Devices that Consume High Power
Planet IPOE-175 Industrial IP67-rated Single-port 802.3bt PoE ++ Injector provides a maximum of up to 60 watts for PoE output port, transmitting both the Gigabit Ethernet data and 802.3bt PoE power over the UTP cable. It is specifically designed for such powered devices (PDs) as PTZ network cameras, PTZ speed dome cameras, color touch-screen voice over IP (VoIP) telephones, multi-channel (11a/b/g/n) wireless LAN access points and other network devices that need a higher power to work stably.

Weather-proof RJ45 Ethernet Connector and Shielded Plug
The IPOE-175 is ideal for installing an extended range of outdoor PoE devices such as outdoor PoE wireless access points, outdoor PoE IP cameras, outdoor PoE IP intercoms and many more. The IPOE-175 is equipped with 3 waterproof cable glands for direct-attach applications. Assembled with waterproof cable gland, it can make the general RJ45 connector weather-proof and provides tight and strong connection. Moreover, it comes with the industrial protection rating of IP67 capable of withstanding humidity, dirt, dust, shock, vibrations, heat and cold.

Environmentally-hardened Design
With industrial-level IP67-rated aluminum case, the IPOE-175 provides a high level of immunity against electromagnetic interference, and is able to protect itself from dust and water ingress and to operate under the temperature range from -40 to 75 degrees C. All these features ensure the highest level of reliability for mission-critical applications in any difficult environment.

Convenient and Reliable Power System
To facilitate the 802.3bt PoE++ usage with commonly used 24~56V DC power input for transportation and industrial-level applications, the IPOE-175 adopts 24~56V DC to 54V power boost technology to solve power source issue but does not require special power supplies. Its wide-ranging voltages design is suitable for worldwide operability with high availability applications requiring dual or backup power inputs.

Robust Protections
The IPOE-175 provides ±8KV DC for Ethernet ESD protection and ±6KV surge immunity to improve product stability and protects users’ networks, making sure the flow of operation does not fluctuate.

Making Network Easier and More Reliable
The IPOE-175 can deliver 60-watt 54V DC power over Cat.5/5e/6 Ethernet cables which allow data and power to transmit simultaneously through the cable between the Injector (IPOE-175) and PoE PD or PoE++ Splitter (IPOE-173S). The maximum distance between the Injector and Splitter is 100 meters. As the IPOE-175 is also backward compatible with IEEE 802.3at PoE+ PD or PoE Splitter, the system administrator only has to use one single RJ45 Ethernet cable to carry both power and data to another device. It would make the network deployment easier and more reliable.
  • Mechanische specificaties
    Type behuizingMetal case. IP-67
    Afmetingen150 x 43.8 x 72.94 mm with cable gland 169.85 x 43.8 x 72.94 mm
    MontageIP67-rated and IK10 aluminum metal case
  • Product eigenschappen
    373g (with three waterproof cable glands)
  • Electrische specificaties
    Type voedingPower over Ethernet
    Input range24~56V DC
  • Omgeving specificatie
    Opslag temperatuur-40°C/+85°C
    Operating Temperatuur-40°C/+75°C
  • Certificeringen
    standaardenFCC Part 15 Class A CE
  • Generieke data
    FabrikantPlanet Technology
