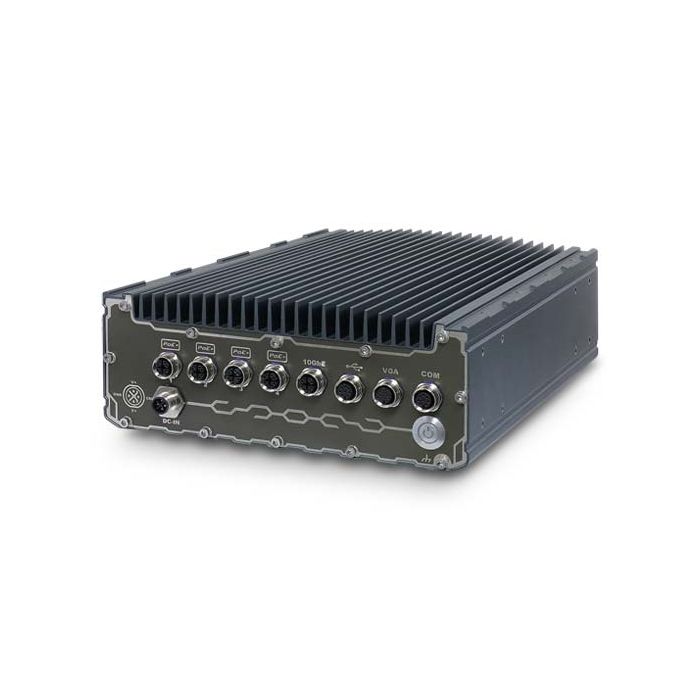

IP67 waterproof fanless pc with 8x M12 PoE+ & SuperCAP UPS

SKU:
SEMIL-1718J
Fabrikant:
Neousys
  • Type Processor : Intel Core, Intel Xeon
  • Max geheugen : 64GB
  • Operating Temperatuur : -40°C/+70°C
Neem contact met ons op voor de levertijd
Details
Specificaties
Downloads

Introduction

SEMIL-1700 series is an extremely rugged 2U half-rack computer with an IP67-rated waterproof and dustproof design. Powered by Intel® Xeon® E or 9th/ 8th-Gen Core™ CPU and coupled with workstation-grade Intel® C246 chipset, it can support up to 64 GB ECC/ non-ECC DDR4 memory. The 2U half-rack form-factor SEMIL-1700 series incorporates Neousys' best-in-class thermal design and offers mounting flexibility where you can wall or rack-mount up to two SEMILs side by side.

SEMIL-1700 adopts a corrosion-proof chassis made of stainless steel and aluminum to counteract against moisture and salinity. Offering a variety of I/O connectivities that utilize M12 connectors to guarantee extremely rugged connections in shock and vibration environments, it has up to eight 802.3at PoE+ ports to supply 25W of power to connected devices. Internal expansion wise, it has an M.2 M-key socket to support NVMe SSD and mini-PCIe sockets for extending feature sets. Additionally, SEMIL-1700 features two 2.5" SATA SDD/ HDD accommodation, 8-48V wide-range DC input with ignition power control and complies with MIL-STD-810G and EN 50155.

To top it off, SEMIL-1710J is equipped with Neousys' innovative SuperCAP-based UPS* containing 2500 watt-second stored energy to sustain or safely shut down the system during unforeseen power outages. Protected against water, dust, high/ low temperature, shock/ vibration and power interruption, Neousys' SEMIL-1700 series is set to redefine edge application computing, where ruggedness matter.
Specificaties
  • Processor
    Type ProcessorIntel Core, Intel Xeon
    Processor serieSkylake, Coffee lake
    Socket typeLGA1151
    Basisfrequentie3.30 GHz
    Aantal cores8
    TDP80W
    chipsetC246
  • Geheugen
    GeheugentypeDDR4
    Geheugenslots2
    Max geheugen64GB
  • Video
    Aansluitingen1x VGA (M12 A-coded), supporting 1920 x 1200 resolution
    ChipsetIntegrated Intel® UHD Graphics 630
  • Belangrijkste eigenschappen
    Kenmerken● Intel® Xeon® E or 9th/ 8th-Gen Core™ i7/ i5/ i3 CPU
    ● Extremely rugged, IP67-rated waterproof and dustproof
    ● -40°C to 70°C wide-temperature fanless operation
    ● 2U 19" half-rack form-factor for rack or wall-mount
    ● Up to 8x 802.3at Gigabit PoE+ ports via M12 X-coded connectors
    ● VGA, USB 2.0 and COM ports via M12 A-coded connectors
    ● Patented SuperCAP-based uninterruptible power backup* (SEMIL-1710J)
    ● 8V to 48V wide-range DC input with built-in ignition power control
    ● MIL-STD-810G and EN 50155 certified
  • Uitbreidingsmogelijkheden
    Uitbreiding slots2x full-size mini PCI Express socket (mux with mSATA)
    2x full-size mini PCI Express socket
  • Poorten & Interfaces
    LAN poorten7
    Seriele poorten2
    USB 2.0 poorten5
    Audio interface1x mic-in and speaker-out (M12 A-coded)
    Externe I/OSerial
    2x 3-wires RS-232 ports COM1 & COM2 (M12 A-coded)

    USB
    4x USB 2.0 (M12 A-coded)

    Interne I/OUSB
    1x USB 2.0 (internal)
    PoE beschikbaarJa
    POE vermogen1x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I219 (M12 X-coded)
    7x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I210 (M12 X-coded)
  • Opslag
    RAID0, 1
    Opslag interfaceSATA HDD\SSD
    2x Internal SATA port for 2.5" HDD/ SSD installation, supporting RAID 0/ 1

    mSATA
    2x full-size mSATA port (mux with mini-PCIe)

    m.2
    1x M.2 2280 M key socket (PCIe Gen3 x4) for NVMe SSD or Intel® Optane™ memory installation
  • Mechanische specificaties
    Type behuizingCompact fanless
    Afmetingen220mm (W) x 310mm (D) x 90.5mm (H)
    MontageMounting Rack-mounting and wall-mounting
  • Product eigenschappen
    Gewicht6.2 kg
  • Electrische specificaties
    Input range8~48V DC input (M12 S-coded)
    Ignition controlBuilt-in ignition power control
    (IGN/ GND signal via M12 serial port connector)
  • Omgeving specificatie
    Opslag temperatuur-40°C/+85°C
    Operating Temperatuur-40°C/+70°C
  • Generieke data
    FabrikantNeousys
    MarktsegmentDefense & Avionica
    Garantie24 Maanden
