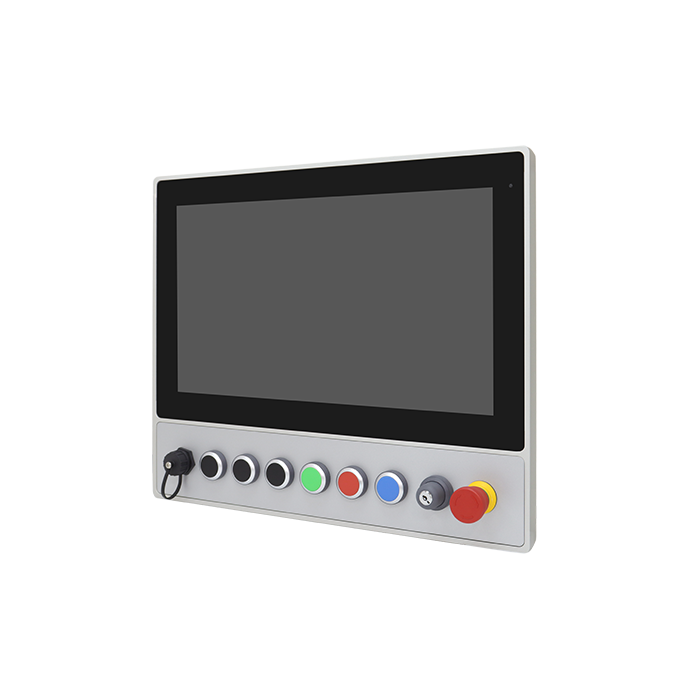

15.6" Full IP65 PPC i3-1115G4E PCAP Button Panel Swing Arm

SKU:
ABOS-916CP
Fabrikant:
Aplex
  • Marktsegment : Automation, IoT
  • Scherm Afmeting : 15,6"
  • Touchscreen type : Capacitive Touch
  • Processor : Intel Core
15.6" Full IP65 PPC i3-1115G4E PCAP Button Panel Swing Arm
Neem contact met ons op voor de levertijd
Details
Specificaties
Downloads
Specificaties
  • Scherm
    Scherm Afmeting15,6"
    Touchscreen typeCapacitive Touch
    Contrast Ratio1000:1
    Helderheid (cd/m2)500
    Kijkhoek (H/V°)178°(H)/178°(V)
    Max screen resolution1920 x 1080
  • Processor
    ProcessorIntel Core
    Processor serieTiger Lake
    Socket typeBGA1449
    Basisfrequentie2.2GHz
    Aantal cores2
    TDP15W
    chipsetSoC
  • Geheugen
    GeheugentypeDDR4
    Geheugenslots2
    Max geheugen64GB
  • Video
    ChipsetIntel® UHD Graphics for 11th Gen Intel® Processors
  • Belangrijkste eigenschappen
    KenmerkenFeatures
    • 15.6” Full HD TFT LED LCD
    • Support Projected Capacitive Touch
    • Built-in RAFI FS22+ Functional Buttons for Intuitive Operation
    • Top/Bottom Swing Arm Mounting
    • IP65 Full Sealed with Anti-Corrosion Enclosure
    • Gap free Sealing and Slim Front Frame Architecture at Front Bezel
    • DC 9~36V Wide Range Power Input
  • Uitbreidingsmogelijkheden
    Uitbreiding slotsMini PCIe
    1x Full size mSATA/mPCIe slot (mPCIe as default, select by BIOS )

    M.2
    1x M.2 2230 E-key slot for Wi-Fi/BT Module

    SIM Slot
    1x Nano SIM slot
  • Poorten & Interfaces
    LAN poorten2
    Seriele poorten2
    USB 3.x poorten4
    Audio interfaceLine-in/ Line-out/ MIC (optional)
    Externe I/OEthernet Ports
    1 x Intel i219LM, RJ45 GbE LAN 1 x Intel i225LM, RJ45 2.5GbE LAN

    USB
    4 x USB 3.2 Type-A

    Serial Port
    1 x COM1 (RS-232/422/485) (optional)
    1 x COM2 (RS-232/422/485, supports 5V/12V/RI) (optional)

    Audio Port
    1 x Line-out

    Digital I/O
    8 bit GPIO (optional)

    Front I/O
    USB
    1 x M12 8-pin for 2 x USB 2.0 for Touch Control with waterproof cover and chain

    Functional Keypad
    1 x M12 8-pin for OSD Cable & External OSD BOX with waterproof cover and chain

  • Opslag
    Opslag interfaceM.2
    1 x M.2 2280 M-key (PCIe x4) slot for PCIe/NVMe SSD)
  • Mechanische specificaties
    Type behuizingFull IP65
    Afmetingen409.9 x 341.1 x 162 mm
    MontageSwing Arm support Rittal CP-40
  • Product eigenschappen
    Gewicht10.23kg
  • Electrische specificaties
    Input rangeDC 9~36V
    Power consumptionMAX: 36W
  • Omgeving specificatie
    Opslag temperatuur-30°C/+70°C
    Operating Temperatuur0°C/+50°C
    Relatieve luchtvochtigheid10 to 90% @ 40°C, non-condensing
  • Certificeringen
    certificatenMeet CE/FCC Class A / UKCA
  • Generieke data
    FabrikantAplex
    MarktsegmentAutomation, IoT
    Garantie24 Maanden
