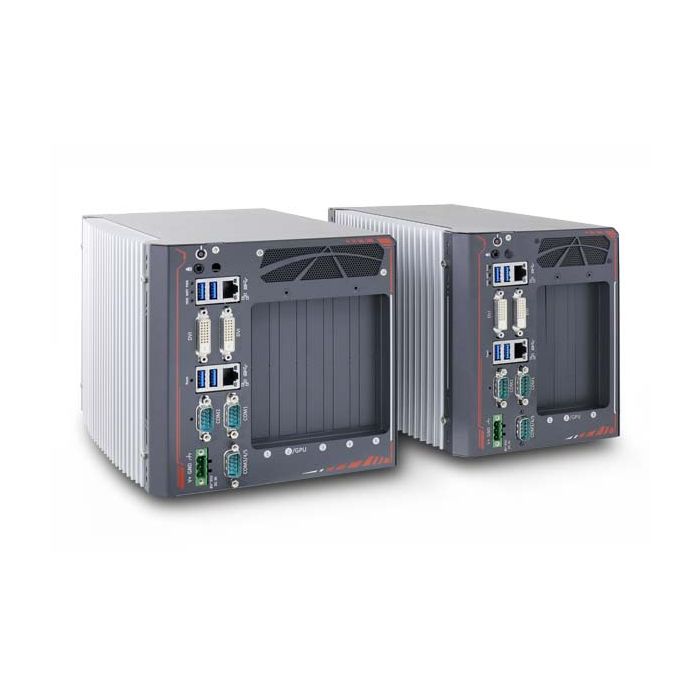

Nuvo-8032 Fanless rugged Box-PC with 2x PCIe and 3x PCI

SKU:
SCA-990944-EM
Fabrikant:
Neousys
  • Type Processor : Intel Core
  • Max geheugen : 32GB
  • Operating Temperatuur : -25°C/+60°C

Door component schaarste geen audio op dit device

Systemen uit de Nuvo-8000 serie zijn industriële box computers met maximaal 5 uitbreidingssloten die perfect uw 19" rackmount computer systemen kunnen vervangen. Door gebruik te maken van Intel® 9e / 8e generatie Core ™ i desktopprocessor met H310-chipset, levert het dezelfde rekenkracht als traditionele IPC's, maar in een veel compactere voetafdruk voor een lagere budgettaire prijs.

Neem contact met ons op voor de levertijd
Configureer dit systeem
Details
Specificaties
Downloads

Introduction

Nuvo-8000 series systems are cost-effective box-PCs with up to 5 expansion slots that can perfectly replace your bulky rack-mount or wall-mount IPC systems. Leveraging Intel® 9th/ 8th-Gen Core™ i desktop processor with H310 chipset, it delivers the same computing power as traditional IPCs but in a much more compact footprint with a budgetary price.

There are four models in the Nuvo-8000 series with various expansion configurations. Customers can choose from a compact 3-slot PCIe system to a 5-slot system with up to three PCIe slots or up to four PCI slots, that best suit their industrial automation or machine vision application needs. It features front-accessible I/Os including two GbE, four USB 3.1 Gen1 and five COM ports that make it easier to access when it is rack-mounted or placed inside a cabinet. Storage wise, Nuvo-8000 series systems have two 2.5” SATA SSD/ HDD and one mSATA socket to support various storage devices. The system can also support a 125W NVIDIA® GPU to offer TFLOPS computing power for modern deep-learning applications.

Nuvo-8000 series systems are designed with satisfying industrial demands in mind. Retaining traditional IPC expansion capabilities and fulfilling diverse application requirements in an extremely compact form-factor with industrial-grade reliability
Specificaties
  • Processor
    Type ProcessorIntel Core
    Processor serieCoffee lake
    Socket typeLGA1150
    Basisfrequentie 2.40 GHz
    Aantal cores6
    TDP25W
    chipsetH310
  • Geheugen
    GeheugentypeDDR4
    Geheugenslots1
    Max geheugen32GB
  • Video
    ChipsetIntegrated Intel® UHD Graphics 630, or independent 125W GPU via x16 PEG port
  • Belangrijkste eigenschappen
    Kenmerken• Supports Intel® 9th/ 8th-Gen Core™ i7/ i5/ i3, Pentium® and Celeron® LGA1151 CPU
    • Up to five expansion slots, a mixed combination of x16 PCIe, x4 PCIe, and PCI slots
    • Dedicated heat dissipation for -25°C to 60°C wide-temperature operation
    • 2x GbE, 4x USB 3.1 Gen1 and 5x COM ports
    • Dual DVI display outputs
    • Up to 2x 2.5" SATA HDD/ SSD accommodation and 1x mSATA socket
    • Wall-mounting and rack-mounting available
  • Uitbreidingsmogelijkheden
    Uitbreiding slotsPCIe
    1x PCIe x16 slot @Gen3, 16-lanes
    1x PCIe x4 slot @Gen2, 2-lanes

    PCI
    3x 33MHz/ 32-bit 5V PCI slots
  • Poorten & Interfaces
    serial ATA interface2x internal SATA ports for 2.5” HDD/ SSD installation
    LAN poorten2
    Seriele poorten4
    USB 2.0 poorten3
    USB 3.x poorten4
    Audio interfaceDue to component scarcity, no audio on this device

    Externe I/OLan
    1x Gigabit Ethernet port by Intel® I219-LM
    1x Gigabit Ethernet port by Intel® I210-IT

    Serial
    1x software-programmable RS-232/ 422/ 485 ports (COM1)
    1x software-programmable RS-422/ 485 ports (COM2)
    3x 3-wire RS-232 ports (COM3/ COM4/ COM5)

    USB
    4x USB 3.1 Gen1 (5 Gbps) ports
    1x USB 2.0 port with Type-A connectors(internal)
    2x USB 2.0 port with 2x8 pins box header(internal)
  • Opslag
    Opslag interfaceSATA
    2x internal SATA ports for 2.5” HDD/ SSD installation

    mSATA
    1x full-size mSATA port
  • Mechanische specificaties
    Type behuizingCompact fanless
    Afmetingen185 mm (W) x 235 mm (D) x 174 mm (H)
    MontageWall-mount (standard)
    DIN-Rail mounting (optional)
    Rack-mount (optional)
  • Product eigenschappen
    Gewicht3.6 Kg
  • Electrische specificaties
    Input range1x 3-pin pluggable terminal block for 8~35VDC DC input
  • Omgeving specificatie
    Opslag temperatuur-40°C ~ 85°C
    Operating Temperatuur-25°C/+60°C
    Relatieve luchtvochtigheid10%~90% , non-condensing
  • Certificeringen
    standaardenVibration
    Operating
    MIL-STD-810G, Method 514.6, Category 4

    Shock
    Operating
    MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II

    EMC
    CE/FCC Class A, according to EN55032 & EN55035
  • Generieke data
    FabrikantNeousys
    Garantie24 Maanden
