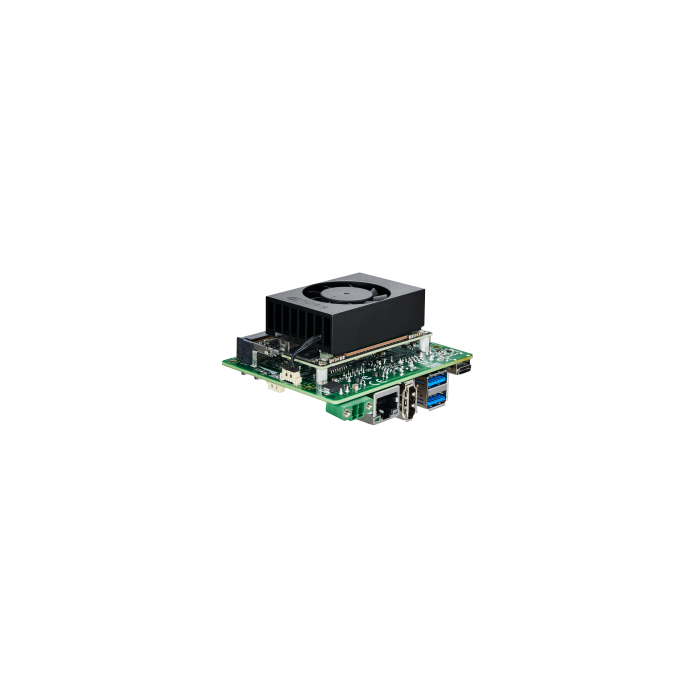

ORIN NX 16GB, HDMI, 1 x GbE, 2 x USB, 128GB SSD, -25°C ~ 80°

  • Processor : NVIDIA Jetson
  • Max geheugen : 16GB
  • Operating Temperatuur : -25°C/+80°C
Neem contact met ons op voor de levertijd
● Up to 80 x AI performance enables AI inference in the smallest Jetson form factor
The NVIDIA Jetson Orin NX module offers up to 100 TOPS, 3 times more than the NVIDIA Jetson AGX Xavier™ module, and approximately 5 times the NVIDIA Jetson Xavier™ NX module; NVIDIA Jetson Orin Nano offers up to 40 TOPS, 80 times the NVIDIA Jetson Nano™ module. In other words, NVIDIA Jetson Orin NX and Orin Nano module set new standard for mainstream and entry-level edge AI in the smallest Jetson form factor.

● Sufficient M.2 for internal and external storage expansion
AIB-SO21/31 and AIB-SN31/41 are edge computing platforms, built in 1x M.2 E-Key for Wifi/BT and 1x M.2 M-Key for storage. To avoid insufficient data storage for edge computing, AIB-SO31/41 and AIB-SN31/41 support external M.2 2242 NVMe with fast data transmission.

● Wide input power and operating temperature for various embedded applications
To meet various embedded applications, especially challenging environments in smart factory, smart city, and smart transportation, AIB-SO21/31 and AIB-SN31/41 support operating temperature ranging from -25°C to 80°C and wide input power from 12 to 24VDC.
  • Processor
    ProcessorNVIDIA Jetson
    Aantal cores8
  • Geheugen
    Max geheugen16GB
  • Video
    1 x HDMI 2.0 Type A
    Chipset1024 Core NVIDIA Ampere, with 32 Tensor Cores
  • Belangrijkste eigenschappen
    KenmerkenAI Performance
    100 TOPS
  • Uitbreidingsmogelijkheden
    Uitbreiding slotsM.2
    1 x M.2 E-Key 2230 (WiFi/BT, PCIe/USB 2.0)
  • Poorten & Interfaces
    LAN poorten1
    Seriele poorten1
    USB 3.x poorten3
    Audio interfaceLine-out/Line-in/Mic (optional with daughter board)
    Externe I/OLan
    1 x RJ-45 GbE Port

    I/O Interfaces
    5 x GPIO
    1 x I2C
    1 x I2S
    1 x RS-232
    1 x UART
    1 x UART (Debug Only)
    1 x SPI
    1 x CAN (Isolation

    2 x USB 3.2 Gen2 Type A
    1 x OTG Type-C
  • Opslag
    Opslag interfaceM.2
    1 x M.2 M-Key 2242 (NVMe 128GB built-in)
  • Mechanische specificaties
    Afmetingen87.4 x 67.4 x 28.45 mm (3.44 x 2.65 x 1.12 in)
  • Product eigenschappen
    Gewicht0.144 kg (0.32 lb) w/ Fansink
  • Electrische specificaties
    Input rangeDC-in 12-24VDC / 2-Pin Terminal Block
    Power consumptionIdle: 5.5 W, Full Loading: 27.25* W
  • Omgeving specificatie
    Opslag temperatuur-40°C/85°C
    Operating Temperatuur-25°C/+80°C
    Relatieve luchtvochtigheid95% @ 40°C (104°F) (non-condensing)
  • Certificeringen
    1 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis

    10 G, IEC 60068-2-27, half sine, 11 ms duration
    certificatenCE/FCC Class A
  • Software support
    Operating systeemUbuntu 20.04
  • Generieke data
    MarktsegmentAutomation, Datacenter , IoT, In-vehicle
