AcroPack VPX Carrier Exp 4xAcroPack 1xVita 42 XMC ext-temp

SKU:

VPX4520-42-30

Fabrikant:

Acromag

Bus-Typ : 6U VPX
Steckkartentyp : XMC, Mini PCIe

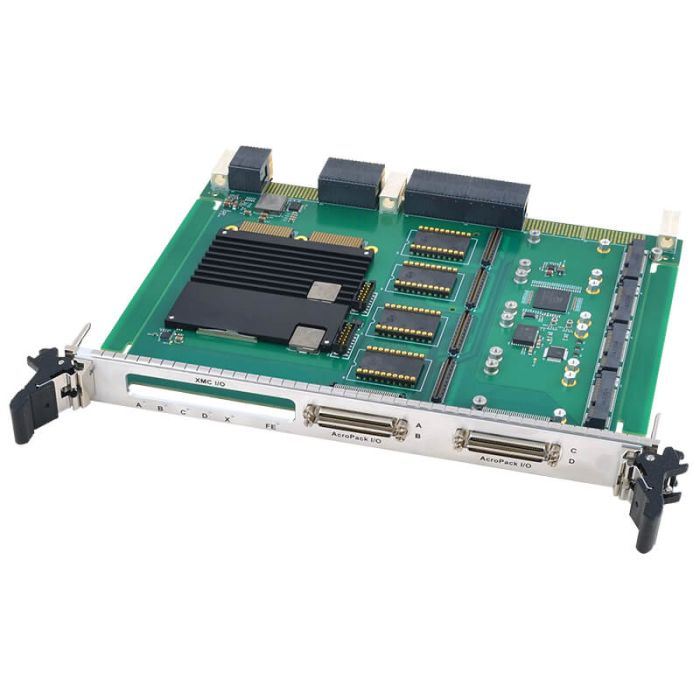

AcroPack VPX Carrier Exp 4xAcroPack 1xVita 42 XMC ext-temp

Lieferzeit auf Anfrage - Preis auf Anfrage

Zur Vergleichsliste hinzufügen

Details

Weitere Informationen

Downloads

Weitere Informationen

Wesentliche Merkmale

Hauptmerkmale

Features
• OpenVPX™ compatible via expansion plane connection
• Support upstream/downstream PCIe links
• Supports use of prXMC single board computers
• Optional backplane configuration for one 16-lane port, two 8-lane ports, or four 4-lane ports
• Supports standard VITA 42 and rugged VITA 61 XMC modules on 25W mezzanine site
• XMC site supports PCIe x8 Gen 3 interface
• 68 pin HD CHAMP front I/O connectors
• Supports 78-bits (39 pairs) of XMC I/O to backplane per pattern X38s+X8d+X12d of VITA 46.9
• Conforms to VITA 42.0, 42.3, 46.0, 46.4, 48, 65
• Supports front or rear panel XMC I/O
• Supports front or rear panel AcroPack I/O
• ±12V AUX power to XMC site

Ports & Schnittstellen

Externe I/O	CHAMP Front panel I/O support for each AcroPack site with 68-pin CHAMP connector (air-cooled only). Front IO for XMC Front panel I/O support for XMC module (air-cooled only).
Interne I/O	Mezzanine - VITA 42 XMC 1x VITA 42 XMC Module slot, XMC site is PCIe Gen 3 and 8 lanes wide AcroPacks 4x AcroPack modules

Mechanische Spezifikation

Bus-Typ 6U VPX
Abmessungen 160mm (L) x 233mm (W)
Steckkartentyp XMC, Mini PCIe
Umgebungsbedingungen

Lagertemperatur -55°C/+125°C
Betriebstemperatur -40°C/+85°C
Relative Luftfeuchtigkeit 5% to 95% non-condensing
Zertifizierung

Normen Vibration
Designed to comply with VITA 47 Class V1.

Shock
Designed to comply with VITA 47 Class OS1.
Allgemeine Daten

Hersteller Acromag
Gewährleistung 24 Monate

Downloads

Datenblatt	Acromag-VPX4520_VPX-6U-Carrier-Expansion-Plane-for-XMC-and-AcroPack-Modules.pdf
