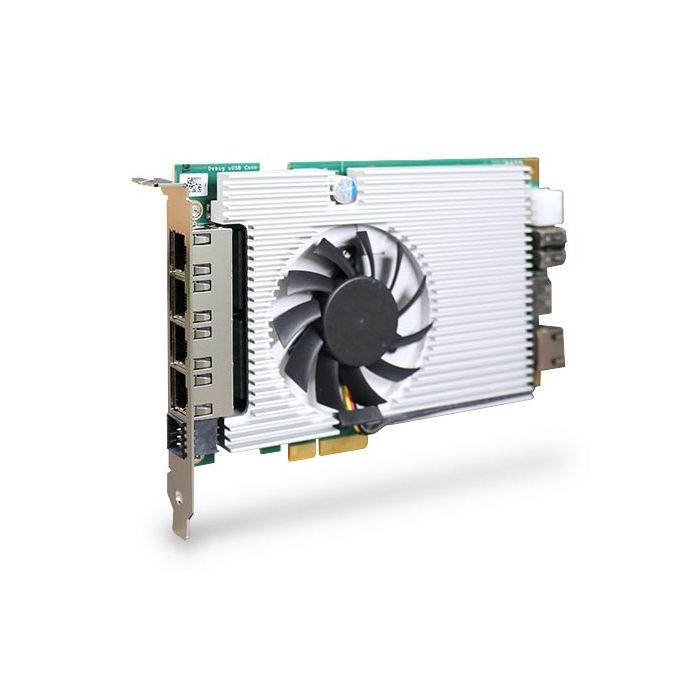

Jetson Orin NX (16GB) and 128GB NVMe 4x GbE PCIe Card

SKU:
PCIE-NX154-JON16
Fabrikant:
Neousys
  • Prozessor-Serie : NVIDIA® Jetson Orin™ NX
  • Anzahl Cores : 8
Jetson Orin NX (16GB) and 128GB NVMe 4x GbE PCIe Card
Lieferzeit auf Anfrage - Preis auf Anfrage
Details
Weitere Informationen
Downloads

Introduction

PCIe-NX154PoE is an intelligent 4-port 2.5GbE PoE+ frame grabber card fueling 100 TOPS AI inference performance for modern vision inspection, intelligent video analytics and surveillance/ security applications. Powered by NVIDIA's Jetson Orin NX system-on-module, PCIe-NX154PoE delivers 100 INT8 TOPS AI performance via its 1024 CUDA cores, 32 Tensor cores and 2 NVDLA® engines. It also features four 2.5GbE PoE+ ports with a 50W total PoE power budget to connect and power industrial GigE cameras or IP cameras.

With a standard single-slot half-length PCIe card form factor and utilizing 2.5GbE for host communication, PCIe-NX154PoE can be installed into a single PCIe x4 slot while operate on Gen2 x1 signals. This makes it an easy integration into any existing computer system, such as a 19" rack-mount IPC or commercial off-the-shelf box PC. When installed into a vision computer system, PCIe-NX154PoE provides necessary camera connectivity, and it also offloads the deep-learning image processing from host CPU/GPU since image capture, video streaming, pre-processing, and inference are all computed on PCIe-NX154PoE.

Wide temperature -25°C to 60°C operation capability, and compatibility with Windows and Linux operating systems make PCIe-NX154PoE the perfect upgrade for legacy machine vision systems to leverage deep learning-based image processing such as object detection, classification, tracking, facial recognition, etc. It’s a revolutionary frame grabber card with intelligence for next-generation computer vision applications.
Weitere Informationen
  • Prozessor
    Prozessor-TypNVIDIA Jetson
    Prozessor-SerieNVIDIA® Jetson Orin™ NX
    Taktfrequenz2GHz
    Anzahl Cores8
  • Arbeitsspeicher
    SpeichertypLPDDR5
  • Video
    Anschlüsse

    Development I/O Interface

    DisplayPort
    1x DisplayPort, supporting 3840x2160 at 60Hz
    ChipsatzNVIDIA® Ampere GPU (1.024 Cuda Cores, 32 Tensor-Cores)
  • Wesentliche Merkmale
    Hauptmerkmale• Powered by NVIDIA® Jetson Orin™ NX bundled with JetPack 5.1.1
    • Single-slot half-length PCIe card form factor
    • 4x PoE+ 2.5 GbE ports with a 50W total power budget
    • 100 TOPS AI inference performance capable of up to four simultaneous streams of 4K@30FPS video decoding
    • 1x isolated RS-485 and 1x RS-232
    • x1 Gen2 PCI Express interface offering 2.5Gb/s
    • -25°C to 60°C operating temperature with airflow (No throttling at 60°C with Orin NX 20W TDP mode)
    • Compatible with Windows and Linux host computers
  • Ports & Schnittstellen
    Serielle Schnittstellen2
    USB 2.0-Anschlüsse3
    Externe I/O

    Deployment I/O Interfaces


    Ethernet Ports
    4x 2.5GBASE-T Ethernet Ports

    PoE Capability
    4x IEEE 802.3at PoE+. Max 25.5W per port. Total 50W power budget for 4 ports

    Serial Ports
    1x RS-232 port and 1x isolated RS-485 port

    Development I/O Interfaces


    Ethernet Ports
    1x Gigabit Ethernet

    USB
    2x USB 2.0 ports
    1x micro USB (OTG)

    Display Port
    1x DisplayPort, supporting 3840x2160 at 60Hz
  • Speicher
    SpeicherschnittstelleM.2 Pre-installed
    1x M.2 2242 M key socket (PCIe Gen4 x2) for NVMe SSD, 128GB with pre-installed system image
  • Mechanische Spezifikation
    Abmessungen167.7 mm (W) x 111 mm (H)
  • Produkt Merkmale
    Gewicht0.4 kg
  • Elektrische Spezifikation
    Eingangsbereich

    Development I/O Interface

    12V DC power input (for standalone development, or when total power consumption is more than 66W)
  • Umgebungsbedingungen
    Lagertemperatur-40°C/+85°C
  • Zertifizierung
    ZertifikateEMC
    CE/FCC Class A, according to EN 55032 & EN 55035
  • Allgemeine Daten
    HerstellerNeousys
    Gewährleistung24 Monate
