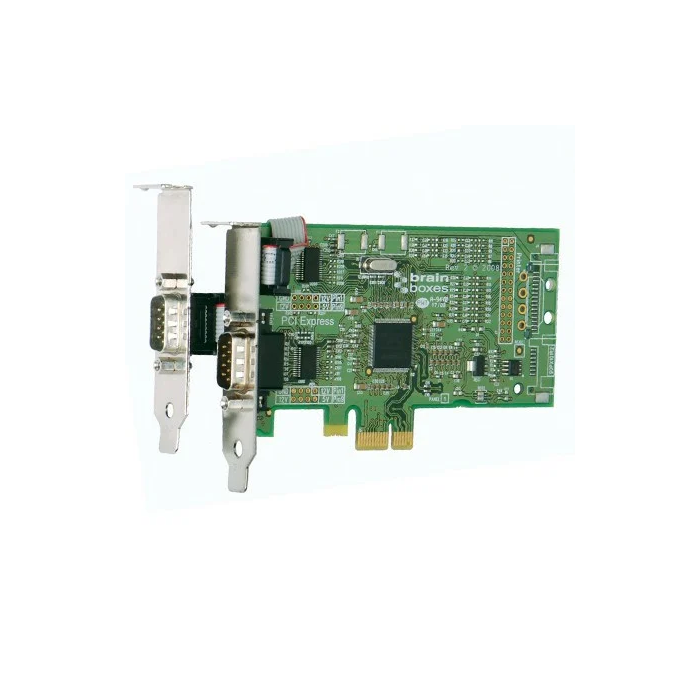

2 Port RS232 Low Profile PCI Express Serial Card

SKU:
PX-101
Fabrikant:
brainboxes
  • Anzahl Schnittstellen : 2
Lieferzeit auf Anfrage - Preis auf Anfrage
Details
Weitere Informationen
Downloads
PCI Express Card providing two RS232 serial ports. Low profile board gives first serial port on the bracket, with a second serial port on a fly lead. Data transfer rates up to 921,600 baud rates and the 128 byte deep transmit and 128 byte receive FIFOS, delivers uncompromising performance on your PC. Drivers for Windows 32 bit and 64 bit Operating Systems including Windows 2000, XP, Server 2003, Vista, Server 2008, Windows 7, 8 and Windows 10.
Weitere Informationen
  • Wesentliche Merkmale
    HauptmerkmalePorts
    2

    Protocol RS232

    Connector
    DB9 Connector - 9 Pin Male

    UART
    Oxford 950

    UART Compatibility
    16750/16550/16450 backwards compatibile

    Tx FIFO Size
    128

    Rx FIFO Size 128

    Operating Distance
    EIA - RS232 Standard

    Cable
    1 port RS232 on fly lead

  • Ports & Schnittstellen
    Anzahl Schnittstellen2
  • Mechanische Spezifikation
    Abmessungen133(l) x 80(w) x 18(h) mm
  • Elektrische Spezifikation
    Leistungsaufnahme380mA @ 3.3V
  • Allgemeine Daten
    Herstellerbrainboxes
