CPU Option
NuTAM-9 - Series offers two distinct CPU options
• Intel Core Ultra 5 125U CPU (2x P-Cores, 8x E-Cores, max. 4.3 GHz Turbo, 15W TDP)
• Intel Core Ultra 7 155U CPU (2x P-Cores, 8x E-Cores, max. 4.8GHz Turbo, 15W TDP)
Optional I/O Ports
NuTAM-9 - Series offers optional I/O Ports. One of each type are selectable (max. 2 Options):
• 2x USB2.0
• 1x USB3.2 Gen1
• 1x 2.5GbE LAN
• 1x COM Port
• 1x HDMI
Different Panel Sizes
NuTAM-9 - Series are available in three different sizes.
• NuTAM-915EP - 15" XGA Version
• NuTAM-917EP - 17" SXGA Version
• NuTAM-921EP - 21.5" FHD Version
High Brightness Display
NuTAM-9 - Series can be equipped with a High Brightness Display with 1000cd/m²
Weitere Informationen
Bildschirm
Touchscreen-Typ
Capacitive Touch
Kontrastverhältnis
1000:1
Helligkeit (cd/m2)
250
Betrachtungswinkel (H/V°)
178°(H) / 178°/V(
Max. Auflösung
1920 x 1080
Prozessor
Prozessor-Typ
Core Ultra
Prozessor-Serie
Meteor Lake
Taktfrequenz
P-Core: 1.3GHz Standard, E-Core: 800MHz Standard
Anzahl Cores
12
Chipsatz
SoC
Arbeitsspeicher
Speichertyp
DDR5 SO-Dimm
Speichersteckplätze
1
Video
Chipsatz
Intel® Graphics
Wesentliche Merkmale
Hauptmerkmale
Features

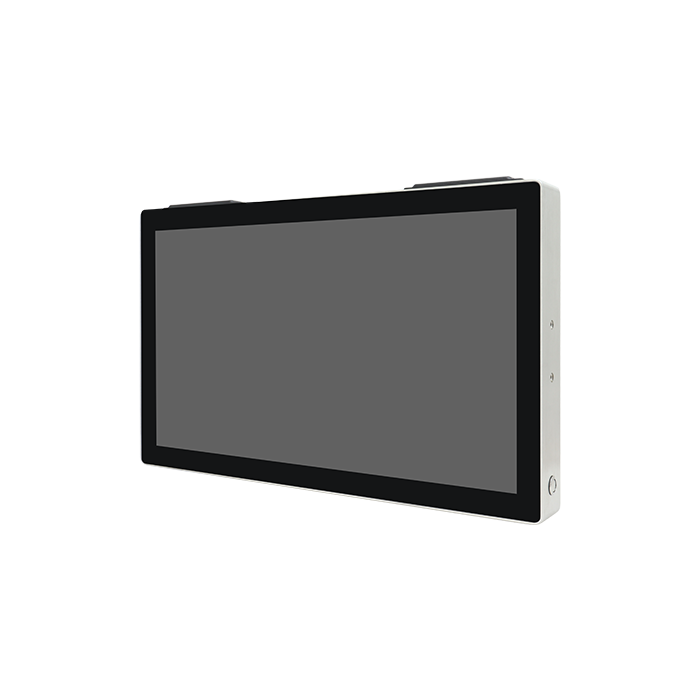

• 21.5" Fanless Stainless Steel Panel PC
• Intel Core Ultra Processors (Series 1)
• True Flat Front Bezel Design and Grade 304 Stainless Steel Enclosure (Grade 316 for Option)
• Support Projective Capacitive Touch
• Touch on/off Button on the Side Edge for Hygienic Cleaning
• IP66/IP69K Rated with M12 Connectors
• DC 9~36V Wide Ranging Power Input
• Support Ergonomic Versatile Mounting: Yoke Mount / VESA Mount
