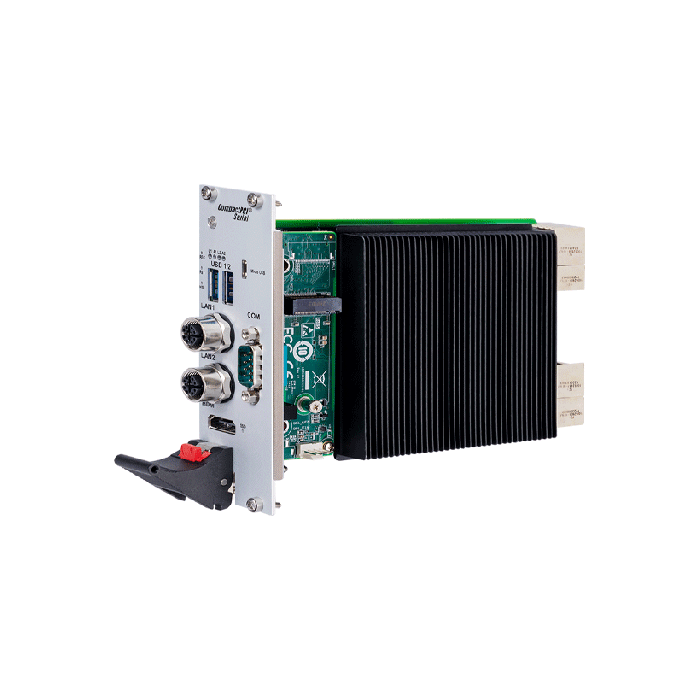

3U CPCI-Serial AI Inference Board NV Jetson AGX Orin 32GB

SKU:

MIC-332-AOC32

Fabrikant:

Advantech

Lieferzeit auf Anfrage - Preis auf Anfrage

Details

Weitere Informationen

Wesentliche Merkmale

Hauptmerkmale	• 3U CPCI-S Computing card for Edge AI • Embedded with NVIDIA® Jetson AGX Orin™ up to 275 TOPS • Supports GbE, 2 x USB 3.2 Gen 2 (10 Gbit/s), 1 x HDMI on 4HP • Supports 1 x DB9, 1 x micro USB on 8HP I/O-1 • Supports 4 x GMSL2.0, 1 x micro USB on 8HP I/O-2 • On-board PCIe 3.0 x4 M.2 M key storage • Rich I/O resources (PCIe3.0 x8, GbE and 10GbE) connected to a backplane

Ports & Schnittstellen

LAN-Anschlüsse	2
Serielle Schnittstellen	1
USB 3.x-Anschlüsse	2
Externe I/O	Ethernet 2x M12 X-coded 2.5GbE USB 2x USB 3.2 Gen2 @10 Gbps, Type A 1x Micro-USB Serial Port 1x DB9 (RS232, 4 line)
Interne I/O	to CPCI-S Backplane Resources P1 - 1x I2C, 1x PCIe3.0 x4 of lower 4-Lane P2 - 1x PCIe3.0 x4 of upper 4-Lane P5 - 1x PCIe clock, 1x PCIe clock REQ P6 - 1x GbE, 1x 10 GbE

Speicher

Speicherschnittstelle M.2
1x M.2 2242 M-Key, NVMe, PCIe x4
Mechanische Spezifikation

Typ SBC CompactPCI serial
Bus-Typ 3U CompactPCI Serial
Abmessungen 160 mm x 100 mm

Umgebungsbedingungen

Lagertemperatur	-40°C/+85°C
Betriebstemperatur	-25°C/+70°C
Relative Luftfeuchtigkeit	Operating: 95% @ 40°C, non-condensing Non-Operating: 95% @ 60°C, non-condensing

Zertifizierung

Normen	Vibration 2Grms, random (5 Hz ~ 500 Hz) Shock 10G, 11ms, each axis three times during operation mode Design to Meet EN50155, EN50121-4 Compliance Standards PICMG® CompactPCI® Serial
Zertifikate	Regulatory Certification CE, FCC, UKCA, RoHS

Preis auf Anfrage
