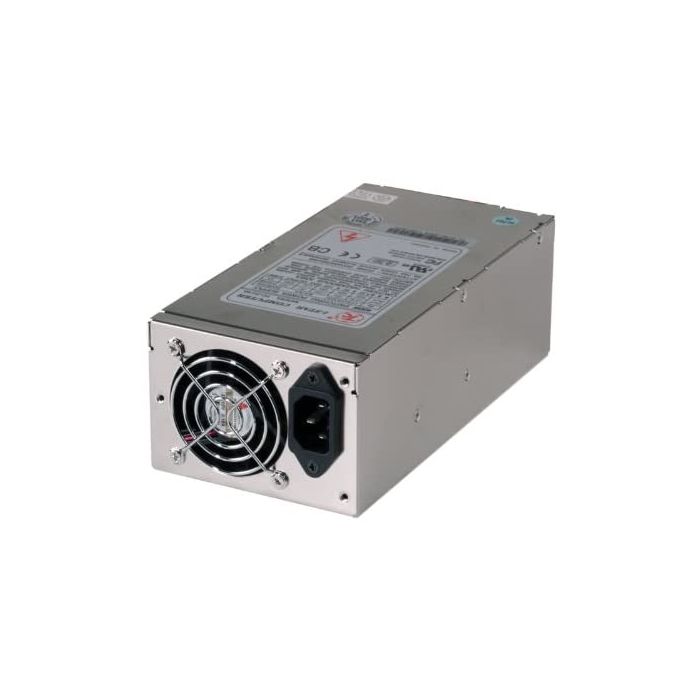

400W Power Supply for 2U

TC-2U40

The 2U Power Supply 400W is the perfect upgrade or replacement for powering an AMD or Intel based server. Ideal for 2U or 3U server cases, this 2U power supply provides your system with a 80 Plus certified power solution, as well as protection against over load, over voltage and over current situations – the perfect solution for delivering stable power to the most demanding devices. This power supply also comes with a built-in, ball-bearing fan, that helps provide superior air flow- in turn, ensuring optimum operating temperatures for long-lasting performance.

Features
● ATX 12V / EPS 12V
● POWER GOOD SIGNAL: PW-OK is power good signal and should be asserted high by the Power Supply to indicate that +5VDC and +3.3VDC output are above the under voltage thresholds of the Power Supply TTL. compatible signal out with 100ms to 500ms.
● OVER POWER PROTECTION: The Power Supply shall shut down when output power exceeds 110﹪to 160﹪ of full load and require a power on cycle be performed by the operate
● OVER VOLTAGE PROTECTION: Standard on +5.0V, set at 6.5VDC ± 0.75VDC
● SHORT CIRCUIT PROTECTION: A short circuit placed between the DC return and the output shall cause no damage and the Power Supply shall shutdown.
● EMI: FCC CLASS B, CISPR22 CLASS B.
● AGENCY APPROVALS: TO MEET UL, CUL, TUV.
● MTBF OF Power Supply ELECTRONNIS: 100,000 hours.
