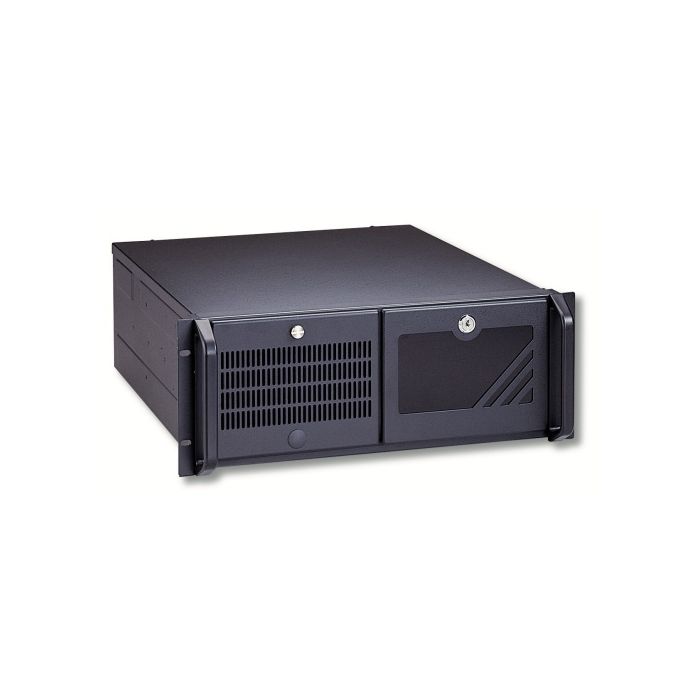

4U 19" Rackmount system Intel 14th/13th Gen IMB-X1714

SKU:
RN04IATX-992613-L
  • Prozessor-Typ : Intel Core
  • Max. Speicher : 192GB
4U 19" Rackmount system Intel 14th/13th Gen IMB-X1714
Lieferzeit auf Anfrage - Preis auf Anfrage
Details
Weitere Informationen
Downloads

Rackmount Systems - provided by Arcobel, customized for your application

Looking for reliable rackmount solutions that truly fit your industrial application?
In demanding industrial environments, standard hardware often falls short. You need a system that’s not only powerful and reliable but also perfectly tailored to your specific application. Think 24/7 operational reliability, flexible expansion options, and long-term availability of identical configurations. Custom Rackmounts are the solution and at Arcobel Embedded Solutions, we take it one step further.

Fully customized 19 inch Rackmounts
At Arcobel, we design and build 19 inch Rackmounts specifically tailored to industrial environments. Each system is assembled and tested in-house, using the latest technologies and offering maximum flexibility. From hardware to a custom embedded Windows image, we deliver a complete solution that combines performance, security, and stability. Our Rackmounts are available in compact 1U to 4U formats, with depths starting at just 40 cm. Perfect for installations where space is limited, but performance and expandability are critical.

24/7 reliability and long-term performance
Our Custom Rackmounts are built for continuous operation in harsh environments. Using high-grade industrial components, we ensure minimal downtime and long-lasting performance. We also offer identical configurations for up to 8 years, preventing redesigns and compatibility issues in long-term projects.

Customized configuration
The configuration shown here serves as a foundation for your custom solution. You can tailor the rackmount system according to your individual requirements and preferences. We are here to advise and support you in making the right choice.

Configuration Opions
Depending on your specifications, the Rackmount system can be equipped with a variety of different components.

CPU - Intel Core 14th/13th Gen
The motherboard supports Intel Core 14th/13th Gen, supporting 65W and 35W TDP models. The performance range is wide and can be adjusted to your applications needs. From Intel Core i3 to Intel Core i7, up to 20 Cores and 5.4GHz.

RAM - DDR4 and DDR5
New motherboards support either DDR4 or DDR5 memory and offer a total capacity of up to 192GB. We use industrial-grade memory from Innodisk and other trusted brands to ensure consistent quality.

SSD - Operating System and Data
Your operating system and data are better protected on industrial storage devices without compromising performance. Security features such as encryption, protection against power surges, and sudden power loss help safeguard your data and applications. Modern SSDs offer capacities of up to 8TB and typically use 3D TLC chips.

Operating System
We support Microsoft Windows 11 IoT Enterprise LTSC and provide assistance with the implementation and integration of your custom images. Upon request, we can install your operating system before delivery to ensure a fast and efficient deployment. Linux is also available upon consultation with our technical team.
Weitere Informationen
  • Prozessor
    Prozessor-TypIntel Core
    Prozessor-SerieRaptor Lake
    SockeltypLGA1700
    LagerbestandSingle
    TaktfrequenzIntel Core i7-14700: max. 5.4GHz
    Anzahl Cores20
    TDP65W
    ChipsatzW680
  • Arbeitsspeicher
    SpeichertypDDR5
    Speichersteckplätze4
    Max. Speicher192GB
  • Video
    AnschlüsseVGA
    1x VGA, Max resolution up to 1920 x 1200@60Hz

    DisplayPort
    1x DisplayPort 1.4a, DP++, Max resolution up to 4096x2160@60Hz

    HDMI
    1x HDMI 2.0b, Max resolution up to 4096x2160@60Hz
    ChipsatzIntel® UHD Graphics
  • Wesentliche Merkmale
    HauptmerkmaleFeatures
    • Intel® Core™ Processor Series 2 (Bartlett Lake-S) and 14th/13th/12th Gen (Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) Core™ Processors with W680 chipset
    • 4x 288-pin ECC/non-ECC Long-DIMM DDR4 3200 MHz, up to 128GB (32GB per DIMM)
    • 1x PCIe x16 (Gen4), 1x PCIe x8 (Gen4), 2x PCIe x4 (Gen4), 1x PCIe x4 (Gen3), 2x PCI
    • 1x USB 3.2 Gen2x2 Type C, 5x USB 3.2 Gen2, 2x USB 3.2 Gen1, 4x USB 2.0
    • 1x M.2 Key B, 1x M.2 Key E, 1x M.2 Key M, 6x COM, 8x SATA3
    • 3x Intel 2.5 Gigabit LAN
    • Supports Triple display, 1x HDMI 2.0b, 1x DP 1.4a, 1x VGA
    • TPM 2.0 onboard IC
    • Supports Intel® vPro, VMD RAID 0/1/5/10
    • ATX PWR (8+24 Pin)
  • Erweiterungsmöglichkeiten
    ErweiterungssteckplätzePCI-Express
    2x PCIe Gen5 Slots (PCIE1/PCIE4:single at x16(PCIE1); dual at x8 (PCIE1) / x8 (PCIE4)) (PCIE1: Support Riser card x8/x8)
    2x PCIe x4 (Gen4)
    3x PCIe x1 (Gen3)

    M.2
    1x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless
    1x M.2 (Key B, 3042/3052) with PCIe x1, USB 3.2 Gen1, USB 2.0 and SIM for 4G/5G

    SIM Slot
    1x SIM socket connected to M.2 Key B
  • Ports & Schnittstellen
    Watchdog-Timer256 segments, 0,1,2…255sec
    LAN-Anschlüsse3
    Serielle Schnittstellen6
    USB 2.0-Anschlüsse4
    USB 3.x-Anschlüsse8
    Audio-Interface1x Realtek ALC897, High Definition Audio. Line-in, Line-out, Mic-in
    Externe I/OEthernet Ports
    1x RJ-45 - Intel® I226V with 10/100/1000/2500 Mbps, supports PoE*
    1x RJ-45 - Intel® I226LM with 10/100/1000/2500 Mbps, supports vPro
    1x RJ-45 - Intel® I226V with 10/100/1000/2500 Mbps
    *PoE Output (DC) : 54V(IEEE802.3af/at), Imax 0.6A

    USB
    5x USB 3.2 Gen2
    1x USB 3.2 Gen2x2 (Type-C, 5V/3A)

    Serial
    2x RS-232/422/485

    Audio
    1x Realtek ALC897, High Definition Audio. Line-in, Line-out, Mic-inw
    Interne I/OUSB
    2 x USB 3.2 Gen1 (1 x USB 3.2 header)
    4 x USB 2.0 (1 x 2.54 pitch header, 2 x USB 2.0 Type-A vertical con)

    Serial
    4x RS-232

    Parallel
    1x Parallel (shared with GPIO)

    GPIO
    8x GPI, 8x GPO, (shared with LPT header)

    PS2
    1x PS2 header

    Thunderbolt
    1x Thunderbolt
  • Speicher
    RAID0, 1, 5, 10
    SpeicherschnittstelleM.2
    1x M.2 (Key M, up to 25110) with PCIe Gen4 x4 for SSD

    SATA
    8x SATA3 (6Gb/s), Intel® VMD RAID 0/1/5/10
    **supported by identical interface (PCIe or SATA)
    PCIe interface: M.2 Key B + M.2 Key M
    SATA interface: SATA port
  • Mechanische Spezifikation
    GehäusetypRackmontage
    Höhe4U
    Abmessungen483mm (W) x 177mm (H) x 510mm (D)
  • Produkt Merkmale
    Gewicht~18kg
  • Elektrische Spezifikation
    Eingangsbereich90-264V AC
  • Allgemeine Daten
    AnwendungAutomatisierung
