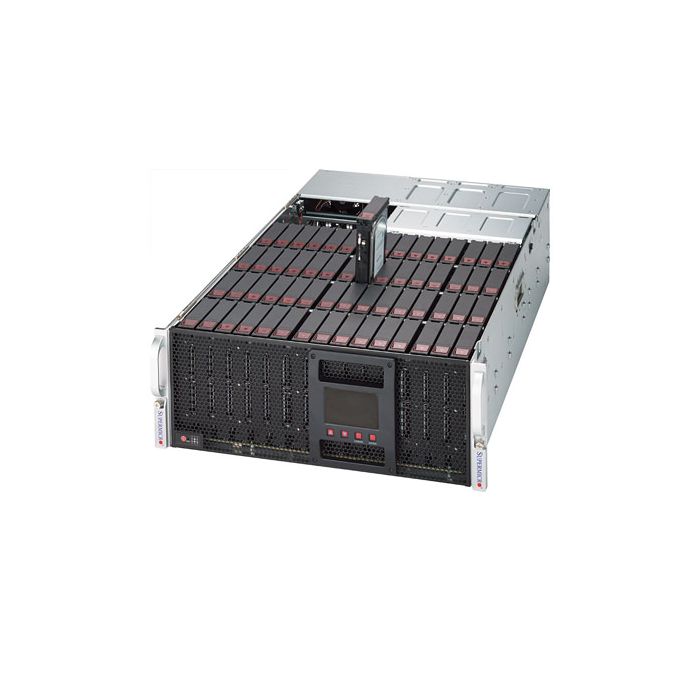

● Dual socket R3 (LGA 2011) supports
Intel® Xeon® processor E5-2600
v4/ v3 family (up to 160W TDP)
● Up to 3TB ECC 3DS LRDIMM , up to
DDR4- 2400 MHz ; 24 DIMM slots
● 2x PCI-E 3.0 x16, 1 PCI-E 3.0 x8
● SIOM for flexible networking options
● 45x Hot-swap 3.5" SAS3/SATA3 drive
bays; 2 rear Hot-swap 2.5" SATA
drive bays; optional 6 NVMe bays
● Broadcom 3008 SAS3 IT mode controller
● Server remote management: IPMI 2.0
/ KVM over LAN / Media over LAN
● 5x hot-swap 8cm redundant PWM fans
PWM fans
● 1600W Redundant Power Supplies
Platinum Level (94%+) Certified
● Front 3.5" LCD display
System is pre configured with
● 2x Intel Xeon Bronze 3204 CPU
● 2x 16GB DIMMs of memory
● 1x SIOM 2-port GbE RJ45, Intel i350 network card
● 12x Seagate 3.5" 2TB SATA Hard Disk
Erweiterungsmöglichkeiten
Erweiterungssteckplätze
PCI-E
1x PCI-E 3.0 x8,
2x PCI-E 3.0 x16,
1x PCI-E 3.0 x8 for Add-On-Module (AOM)
4x Port NVMe PCI-E 3.0 x4 via OCuLink
Ports & Schnittstellen
LAN-Anschlüsse
3
Serielle Schnittstellen
4
USB 3.x-Anschlüsse
3
Externe I/O
LAN
1x RJ45 Dedicated IPMI LAN port
2x RJ45 GbE SIOM Intel i350 module
Serial
1X COM port
Interne I/O
Serial
1x COM port by header
2x fast UART 16550 serial
