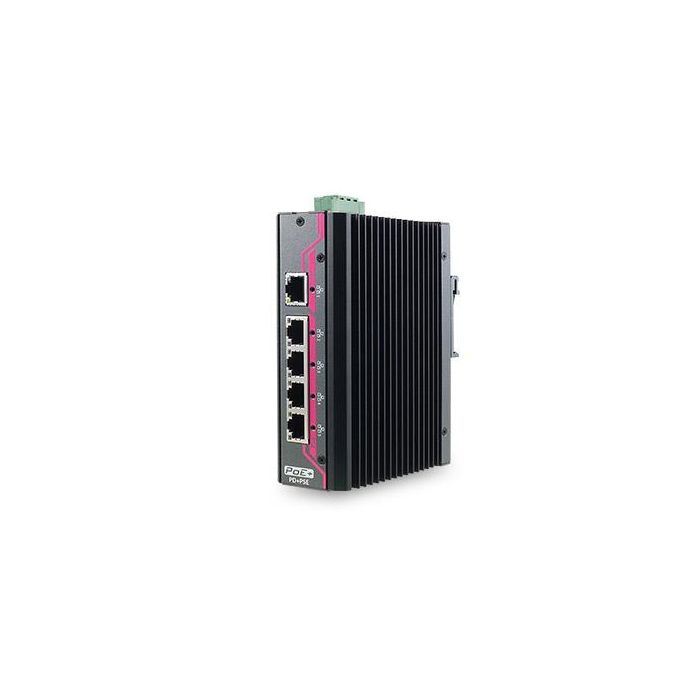

5-port IEEE 802.3at PoE+ unmanaged Gigabit Ethernet switch

SKU:

EDX-104J

Fabrikant:

Neousys

Lieferzeit auf Anfrage - Preis auf Anfrage

Details

Weitere Informationen

Downloads

Weitere Informationen

Wesentliche Merkmale

Hauptmerkmale	Five 10/100/1000 Mbps Gigabit Ethernet ports Supports IEEE 802.3at PoE+ PSE on port 2~5 Up to 25.5 W power output on each port, total 80W power budget Dual power Input: - PoE+ PD (Powered Device) mode via port 1 - 24/48 VDC input with power connector EMS level 3 protection for industrial environments Industrial-grade, -25°C to 70°C fanless operation IP50 (EDX-104J) housing

Zertifizierung

Normen	Vibration Operating, 5 Grms, 5-500 Hz, 3 Axes, according to IEC60068-2-64 Shock Operating, 50 Grms, Half-sine 11 ms Duration, according to IEC60068-2-27 Shock Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) EMC CE/FCC Class A, according to EN 55022 & EN 55024

Downloads

Datenblatt	edx-104_datasheet.pdf

392,70 € 330,00 €
