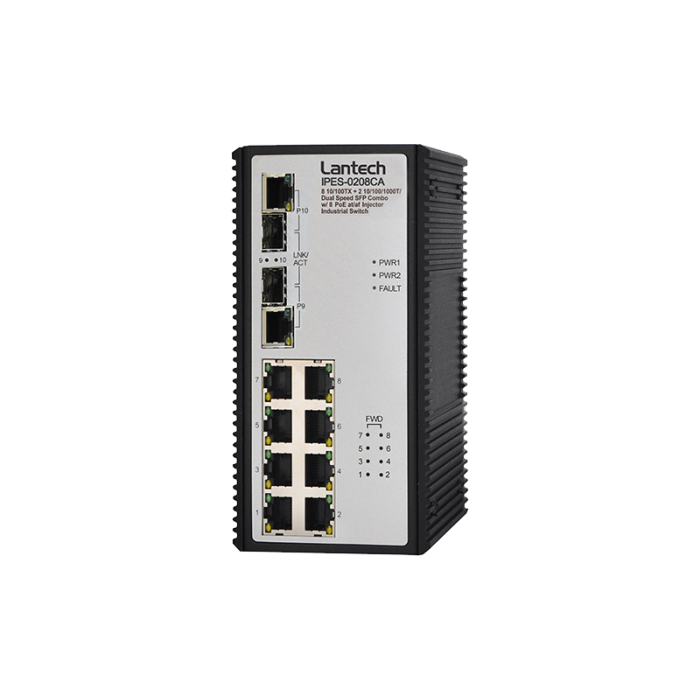

IPES-0208CA-12V

SKU:

8350-751

Fabrikant:

Lantech

8 10/100TX + 2 10/100/1000T/ Dual Speed SFP Combo w/ 8 Booster PoE at/af Injector (12/24/48V) Industrial Switch; -20~60C

Lieferzeit auf Anfrage - Preis auf Anfrage

Details

Weitere Informationen

Ports & Schnittstellen

Schaltertyp	Unmanaged Switch
LAN-Anschlüsse	10
Switch Architecture	Back-plane (Switching Fabric): 5.6Gbps
Übertragungsrate	14,880pps for Ethernet port 148,800pps for Fast Ethernet port 1,488,000pps for Gigabit Fiber Ethernet port
PoE verfügbar	Nee
PoE-Leistung	Per port provides 15.4W/30W ability. RJ-45 port # 1~# 8 support IEEE 802.3af/at End-point, Alternative A mode. Positive (VCC+): RJ-45 pin 1,2. Negative (VCC-): RJ-45 pin 3,6.
Protokoll	CSMA/CD
LED	Per unit: Power (Green), Power 1 (Green), Power 2 (Green), Fault (Red), 8 port 10/100: Link/Activity (Green), Full duplex/Collision (Yellow), Power Feeding (Green) Giga port: Link/Activity(Green),Giga Speed (Yellow)

Mechanische Spezifikation

Gehäusetyp	Metallgehäuse IP-30
Abmessungen	74mm (W) x 114mm (D) x 152mm (H)
Montage	Provide DIN rail kit and wall mount ear** for wall mount or DIN-type cabinet install

Zertifizierung

Normen	IEEE Standards IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE802.3z Gigabit fiber IEEE802.3x Flow Control and Back Pressure IEEE802.3af/at Power over Ethernet
Zertifikate	EMI & EMS FCC Class A, CE EN61000-4-2 (ESD), CE EN61000-4-3 (RS), CE EN-61000-4-4 (EFT), CE EN61000-4-5 (Surge), CE EN61000-4-6 (CS), CE EN61000-4-8, CE EN61000-4-11, CE EN61000-6-2 CE EN55032 Class A, CE EN55024 , ISO-7637 Stability Testing IEC60068-2-32 (Free fall), IEC60068-2-27 (Shock), IEC60068-2-64 (Vibration)

556,33 € 467,50 €
