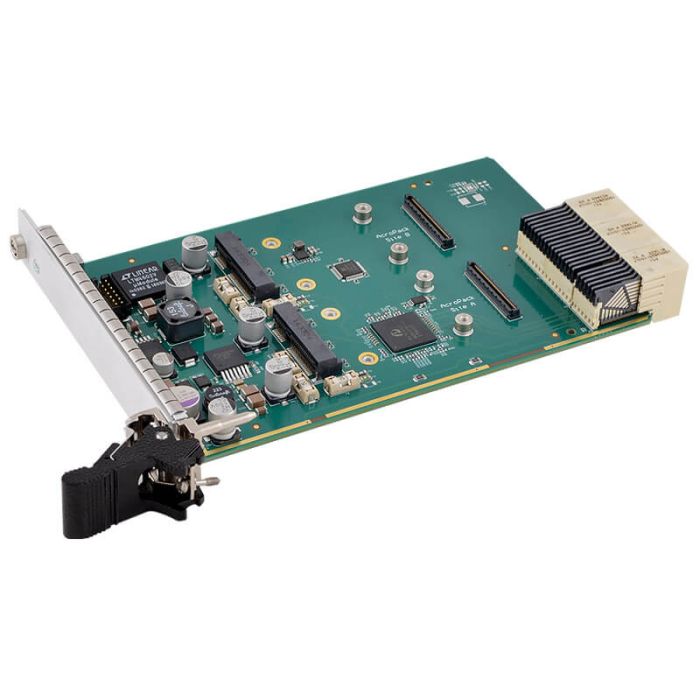

AcroPack 3U CPCI-S Carrier 2x AcroPack/mPCIe Slot front I/O

SKU:

ACPS3310

Fabrikant:

Acromag

Bus-Typ : 3U CompactPCI Serial
Steckkartentyp : Mini PCIe

AcroPack 3U CPCI-S Carrier 2x AcroPack/mPCIe Slot front I/O

Lieferzeit auf Anfrage - Preis auf Anfrage

Zur Vergleichsliste hinzufügen

Details

Weitere Informationen

Downloads

Weitere Informationen

Wesentliche Merkmale

Hauptmerkmale

Features
• Two AcroPack or mini-PCIe module slots support any combination of I/O functions
• PCI Express Version 2.1 compliant carrier
• Compliant with PICMG CPCI-S.0 R2.0 standard
• PCIe switch allows two devices to share a single 4HP peripheral board slot in a CPCI-S chassis
• Geographical addressing identifies carrier location on the backplane
• Front panel 68-pin VHDCI CHAMP 0.8mm connectors for field I/O signals
• Isolated power supply option for use with isolated AcroPack modules
• Fused +1.5V, +3.3V, +5V, +12V, -12V DC power. A fuse is present on each supply line serving each AcroPack module.
• JTAG header for programming and debugging AcroPack modules with an FPGA
• Extended temperature range
• Software development tools for VxWorks, Linux, and Windows environments

Ports & Schnittstellen

Interne I/O

CompactPCI Serial
CompactPCI Serial (CPCI-S.0) peripheral slot card with P1 connector. PCIe x4. Geographical addressing (GA0-GA3).

PCI Express
PCIe Gen 2 switch expands host PCIe port to two ports, one for each AcroPack site. The host port has one or four PCIe lanes (depending on CPCI-S slot). Each AcroPack site has one lane.

AcroPack / Mini PCIe Mezzanine
Site B includes USB 2.0 interface.
Front panel interface: Each AcroPack module routes to a 68-pin VHDCI CHAMP connector (stacked).
Rear interface: Both AcroPack modules have a PCIe x1 link (via switch) to the CPCI-S P1 connector.
Isolation: Host logic and field I/O isolated from each other up to 250V AC/DC continuous (1500V AC for one minute). Optional isolated DC/DC converter is required for
use with isolated AcroPack modules. Carrier also provides 100VAC/DC continuous isolation between AcroPack module signals. Isolation between adjacent pins/signals on
front I/O cable is 30V.

Mechanische Spezifikation

Bus-Typ 3U CompactPCI Serial
Abmessungen 100.0mm (L) x 160.0mm (W)
Steckkartentyp Mini PCIe
Elektrische Spezifikation

Eingangsbereich Power Requirements +12V supply (±10%): 290mA typical with no AcroPacks installed.
Umgebungsbedingungen

Lagertemperatur -55°C/+125°C
Betriebstemperatur -40°C/+85°C
Relative Luftfeuchtigkeit 5% to 95% non-condensing

Zertifizierung

Normen	Shock, Operating Designed to comply with IEC 60068-2-27: 30G, 11ms half sine, 50G, 3mS half sine, 18 shocks at 6 orientations for both test levels. Vibration, Operating Sinusoidal: Designed to comply with IEC 60068-2-6: 10-500Hz, 5G, 2 Hours/axis. Random: Designed to comply with IEC 60068-2-64: 10-500Hz, 5G-rms, 2 Hours/axis.
Zertifikate	CE Certification CE compliant

Software Support

Betriebssystem Windows, Linux, VxWorks
Allgemeine Daten

Hersteller Acromag
Gewährleistung 24 Monate

Downloads

Datenblatt	ACPS3310-20-3U-cPCI-Serial-Isolated-Front-IO-AcroPack-Carrier.pdf
