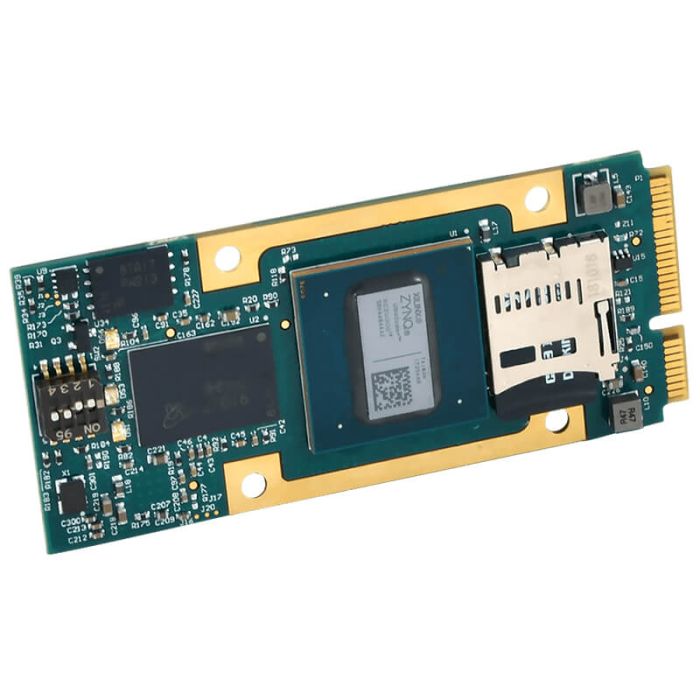

AcroPack APZU-303 module, APCe7012, I/O Panel, Software
SKU:
APZU-303-QSP
Fabrikant:
Acromag
- Anzahl Schnittstellen : 20+3
- I/O-Typ : TTL & EIA
- Bus-Typ : PCIe
- Steckkartentyp : IndustryPack
AcroPack APZU-303 module, APCe7012, I/O Panel, Software
Note: Operating temperature
Air-cooled (with heat spreader): -40 to 70°C
(minimum airflow of 400LFM is recommended).
Conduction-cooled: -40 to 80°C
Note: Operating temperature
Air-cooled (with heat spreader): -40 to 70°C
(minimum airflow of 400LFM is recommended).
Conduction-cooled: -40 to 80°C
Details
Weitere Informationen
Downloads
Quick Start Package
The Quick Start Package not only includes the module but the carrier card, an I/O panel and the software.
The Engineering design kit (APZU-EDK) is required for development.
Acromag’s Engineering Design Kit (EDK) provides an FPGA generated firmware example design that provides host access to the hardware digital I/O on the APZU module. The example is implemented using the AMD Vivado® development environment and offers a starting point from which customers can develop their customized applications.
Included in the package:
• APZU-303 module
• APCe7012 carrier
• 5028-626 I/O panel
• APZU-EDK software
