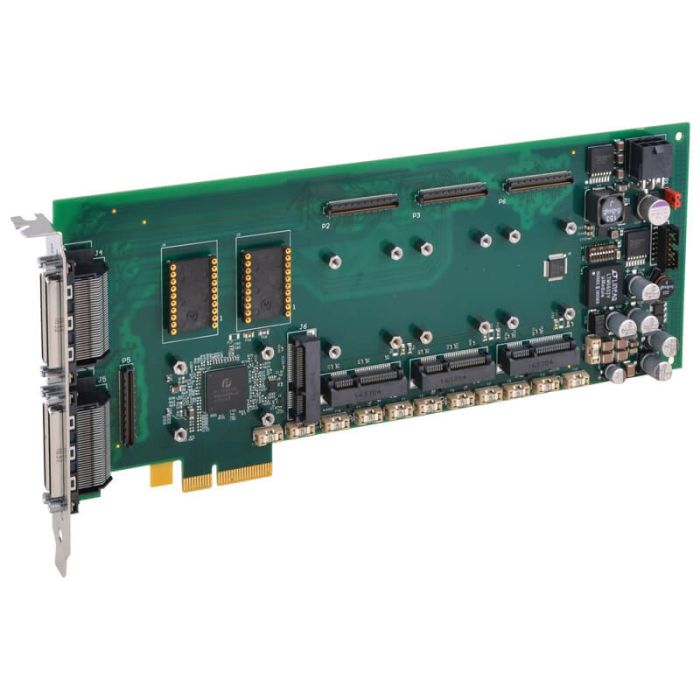

AcroPack Carrier for AcroPack/mPCIe modules, 4x Slots, 3/4

SKU:

APCE7043E-LF

Fabrikant:

Acromag

Bus-Typ : PCIe
Steckkartentyp : Mini PCIe

AcroPack Carrier for AcroPack/mPCIe modules, 4x Slots, 3/4

Lieferzeit auf Anfrage - Preis auf Anfrage

Zur Vergleichsliste hinzufügen

Details

Weitere Informationen

Downloads

Weitere Informationen

Wesentliche Merkmale

Hauptmerkmale

Features
• Four AcroPack or mini-PCIe module slots support any combination of I/O functions
• 3/4-length PCIe card (10 inches)
• PCI Express 2.1 compliant, x4 interface
• Plug-and-play carrier configuration and interrupt support
• Fused +1.5V, +3.3V, +5V, +12V, and -12V DC power is provided. A fuse is present on each supply line serving each AcroPack module.
• Front panel 68-pin VHDC1 CHAMP 0.8 connectors for field I/O signals
• Optional isolated power supplies on two slots. Support for AcroPacks requiring ±12 V isolated power.
• Extended temperature range
• DIP switch card identification
• Standard 14-pin Xilinx JTAG programming header
• Software development tools for VxWorks®, Linux®, and Windows® environments.

Ports & Schnittstellen

Externe I/O CHAMP
4x 68-pin CHAMP cable connections.Pin assignments are defined by the installed AcroPack module.
Mechanische Spezifikation

Bus-Typ PCIe
Abmessungen 253.99mm (L) x 111.12mm (W)
Steckkartentyp Mini PCIe
Umgebungsbedingungen

Lagertemperatur -55°C/+125°C
Betriebstemperatur -40°C/+85°C
Relative Luftfeuchtigkeit 5% to 95% non-condensing
Allgemeine Daten

Hersteller Acromag
Gewährleistung 24 Monate

Downloads

Datenblatt	APCe7043-PCI-Express-Carrier-Card-For-AcroPack-Modules.pdf

Preis auf Anfrage
