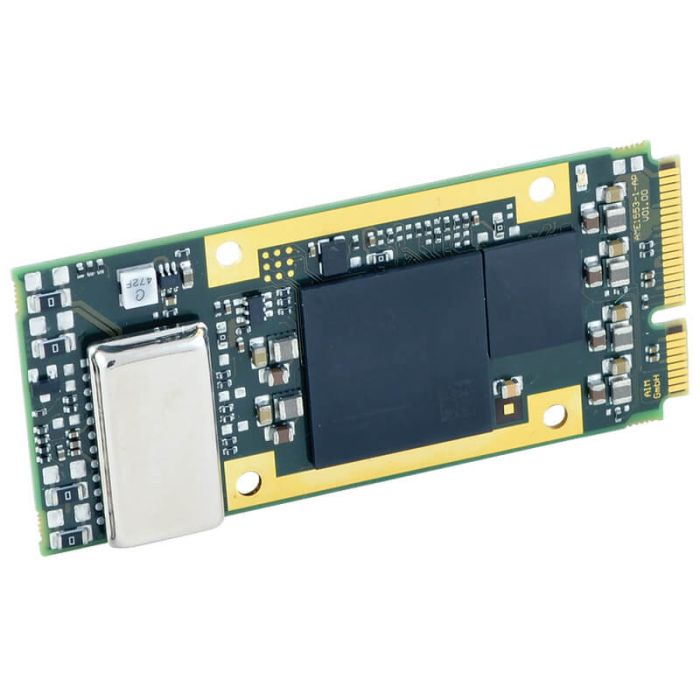

AcroPack Dual-redundant full multi-func MIL-STD-1553 CH mod

SKU:
AP572-000
Fabrikant:
Acromag
  • Anzahl Schnittstellen : 1
  • I/O-Typ : MIL-STD-1553
  • Bus-Typ : PCIe
  • Steckkartentyp : IndustryPack
AcroPack Dual-redundant full multi-func MIL-STD-1553 CH mod

Note: Operating Temperature Range
-40°C to +85°C for conduction cooled applications measured at FPGA component case.
-40°C to +70°C for air cooled applications measured at ambient air with 200lfm airflow.
Lieferzeit auf Anfrage - Preis auf Anfrage
Details
Weitere Informationen
Downloads
Weitere Informationen
  • Wesentliche Merkmale
    HauptmerkmaleFeatures
    • Very small form factor at 70mm x 30mm
    • One dual redundant MIL-STD-1553 channel
    • Transformer or direct coupling options
    • IRIG-B input
    • 4 open/ground avionics level (+35V) discrete I/O
    • 2 digital discrete inputs
    • 1 trigger input, 1 trigger output
    • RT address inputs
    • 128MB global RAM onboard for data scheduling and buffering
    • -40°C to +85°C operating temperature
    • High performance RISC processors onboard
    • Host CPU offload for low CPU utilization
    • Hard real time precision and timing
    • DMA engine for optimized bus transfers and low PCIe bus utilization
    • Flexible & upgradeable firmware design provides full control of obsolescence and configuration management
  • Ports & Schnittstellen
    Externe I/OMIL-STD-1553 Channel
    One dual redundant full multi-function MIL-STD-1553 ch. (BC + multi-RT + BM simultaneous operation).
    Anzahl Schnittstellen1
    I/O-TypMIL-STD-1553
  • Mechanische Spezifikation
    Bus-TypPCIe
    Abmessungen70.0mm (L) x 30.0mm (W)
    SteckkartentypIndustryPack
  • Umgebungsbedingungen
    Lagertemperatur-55°C/+125°C
    Betriebstemperatur-40°C/+70°C
    Relative Luftfeuchtigkeit5% to 95% non-condensing
  • Zertifizierung
    NormenOperational Shock
    Tested to IEC 60068-2-27: 30G, 11ms half sine, 50G, 3mS half, 18 shocks at 6 orientations for both test levels.

    Sinusoidal Operating Vibration
    Tested to IEC 60068-2-6: 10-500Hz, 5G, 2 hours/axis.

    Random Operating Vibration
    Tested to IEC 60068-2-64: 10-500Hz, 5G-rms, 2 hours/axis
  • Software Support
    BetriebssystemWindows, Linux, VxWorks
  • Allgemeine Daten
    HerstellerAcromag
    Gewährleistung24 Monate
