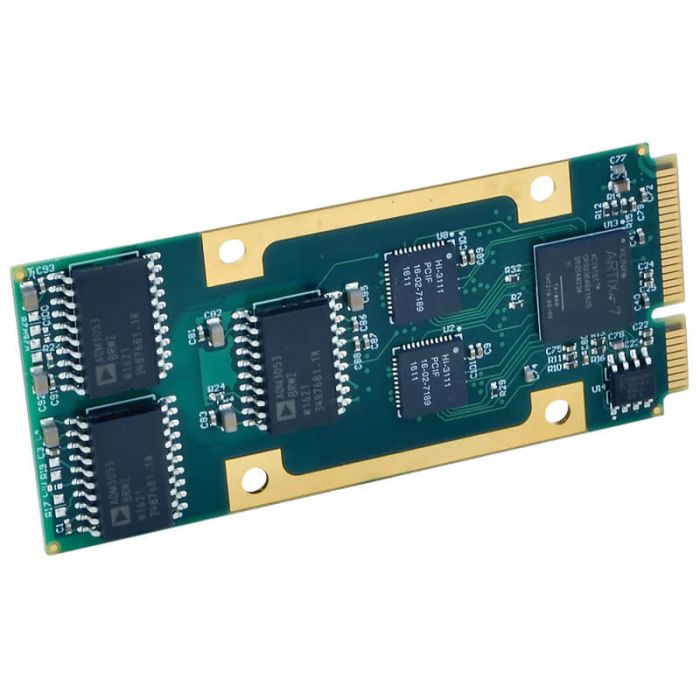

AcroPack Quad-Channel isolated CAN Bus interface module

SKU:

AP560AE-ISO-LF

Fabrikant:

Acromag

Anzahl Schnittstellen : 4
I/O-Typ : CAN
Bus-Typ : PCIe
Steckkartentyp : IndustryPack

AcroPack Quad-Channel isolated CAN Bus interface module

Note: Temperatures above 65°C will require a heatsink model AP-CC-01.

Lieferzeit auf Anfrage - Preis auf Anfrage

Zur Vergleichsliste hinzufügen

Details

Weitere Informationen

Downloads

Weitere Informationen

Wesentliche Merkmale

Hauptmerkmale

Features
• Four isolated CAN channels
• H13111 CAN bus controller with high-speed ADM3053 CAN transceiver
• 1000V isolation, channel-to-channel and channel-to-host
• ISO 11898 compliance for Part A (11-bit) and Part B extended (29-bit) arbitration IDs
• CAN 2.0A/B protocol with programmable bit rate up to 1Mbit/sec. ISO 11898-5 compliant
• Configurable to support ARINC 825 and CANaerospace Standards
• Standard, Extended and Remote frames supported
• 8 maskable identifier filters
• Filtering on ID and first two data bytes for both Standard and Extended Identifiers
• Monitor (Listen-only) mode
• 8-message Transmit and Receive FIFOs
• Internal 16-bit free running counter for time tagging of transmitted or received messages
• Re-transmission disable capability

Ports & Schnittstellen

Externe I/O	CAN Bus Depending on the carrier board Quad-channel isolated CAN bus interface module
Anzahl Schnittstellen	4
I/O-Typ	CAN
Netzwerk-Controller	Holt H13111 CAN controller with ADM3053 transceiver.

Mechanische Spezifikation

Bus-Typ PCIe
Abmessungen 70.0mm (L) x 30.0mm (W)
Steckkartentyp IndustryPack
Umgebungsbedingungen

Lagertemperatur -55°C/+125°C
Betriebstemperatur -40°C/+71°C
Relative Luftfeuchtigkeit 5% to 95% non-condensing

Zertifizierung

Normen	Operating Vibration Designed to comply with IEC 60068-2-64: 10-500Hz, 5G-rms, 2 hours/axis. Operating Shock Designed to comply with IEC 60068-2-27: 30G, 11ms half sine, 50G, 3mS half sine, 18 shocks at 6 orientations for both test levels. EMC Directive Conforms to EMC Directive 2004/108/EC

Software Support

Betriebssystem Windows, Linux, VxWorks
Allgemeine Daten

Hersteller Acromag
Gewährleistung 24 Monate
