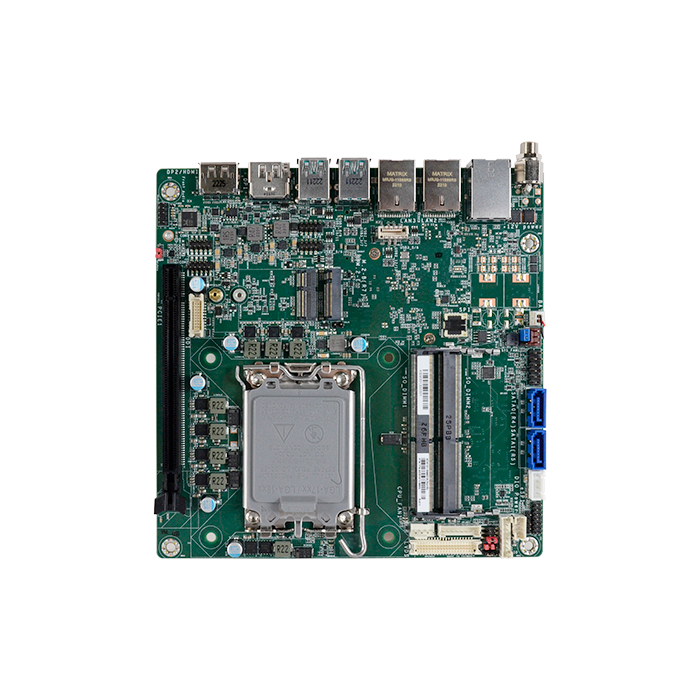

ADS101-R680DB, 12/13. Gen, M-ITX, R680E, 12V, -5~65°C
Prozessor-Typ :
Intel Core
Max. Speicher :
64GB
Typ SBC :
MicroATX
Betriebstemperatur :
-5°C/+65°C
ADS101-R680DB, 12/13. Gen, M-ITX, R680E, 12V, -5~65°C
Lieferzeit auf Anfrage - Preis auf Anfrage
Details
Weitere Informationen
Downloads
Weitere Informationen
Prozessor
Prozessor-Typ Intel Core Prozessor-Serie Alder Lake, Raptor Lake Sockeltyp LGA1700 Taktfrequenz 1.80GHz Anzahl Cores 24 TDP 65W Chipsatz R680E
Arbeitsspeicher
Speichertyp DDR4 Speichersteckplätze 2 Max. Speicher 64GB
Video
Anschlüsse DisplayPort
1x DP++
1x DP++/HDMI
DP++: resolution up to 4096x2304 @60Hz
LVDS
1x LVDS/eDP
LVDS: resolution up to 1920x1200 @60Hz
eDP: resolution up to 4096x2160 @ 60Hz
Extension Port
1x DFI display extension port (DP/ HDMI/VGA available)Chipsatz Intel® HD Gen 9 Graphics
Erweiterungsmöglichkeiten
Erweiterungssteckplätze PCIe
1x PCIe x16 (Gen 5)
M.2
1x M.2 2230 E Key (USB/PCIe x1)
Ports & Schnittstellen
LAN-Anschlüsse 2 Serielle Schnittstellen 2 USB 2.0-Anschlüsse 4 USB 3.x-Anschlüsse 6 Audio-Interface 1 x Line-out Externe I/O LAN
1x 2.5GbE (RJ-45)
1x GbE (RJ-45) (2x by Opt.)
USB
4x USB 3.2 Gen2 (Opt.: up to 6 x USB 3.2 Gen2)Interne I/O Serial
2 x RS-232/422/485 (without power) (2.54mm pitch)
USB
4x USB 2.0 (2.54mm pitch)
2x USB 3.2 Gen1 (R680E/Q670E only)
DIO
1x 8-bit DIO
Speicher
RAID 0, 1, 5, 10 Speicherschnittstelle M.2
1x M.2 2280 M Key (PCIe Gen4 x4/SATA)
1x M.2 2242/3042/3052 B Key (PCIe Gen3 x1/SATA/USB 3.2 Gen2/USB 2.0)
SATA
2 x SATA 3.0 (up to 6Gb/s)
RAID 0/1/5/10 (w/ M.2 Key-M/B slot + 2 SATA Conn.)
Mechanische Spezifikation
Typ SBC MicroATX Abmessungen Mini-ITX Form Factor , 170mm (6.7") x 170mm (6.7")
Elektrische Spezifikation
Eingangsbereich Single 12V +/-10% DC (ADS101)
Umgebungsbedingungen
Lagertemperatur -40°C/+85°C Betriebstemperatur -5°C/+65°C Relative Luftfeuchtigkeit Operating: 5% ~ 90% RH
Storage: 5% ~ 90% RH
Zertifizierung
Zertifikate CE, FCC Class B
Allgemeine Daten
Hersteller DFI Anwendung Automatisierung, IoT
