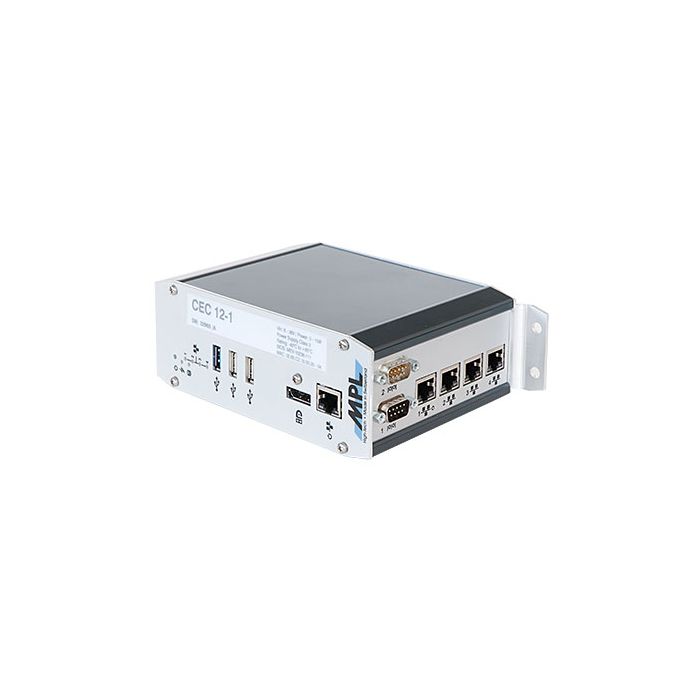

Intel® HD Graphics for Intel Atom® Processor Z3700 Series
Wesentliche Merkmale
Hauptmerkmale
• DDR3 ECC RAM up to 8GB
• 5 Gbit Ethernet ports on RJ45, M12, or fiber
• Fanless operation
• Long term availability
• Customizable IO board
Erweiterungsmöglichkeiten
Erweiterungssteckplätze
mPCIe
1x mPCIe full size card socket, shared with mSATA MPL Bus
2x PCIe x1 / SDIO / SPI / 2x UART / LPC / SATA / 2x HSIC ideal for customized expansions
Ports & Schnittstellen
LAN-Anschlüsse
8
Serielle Schnittstellen
2
USB 2.0-Anschlüsse
1
Audio-Interface
Intel HDAudio signals, available on a 1 mm header, sound card (HDSOUND-1) is available
Externe I/O
Graphics Interfaces
Display Port (DP) up to 2560x1600 (DP), ESD protected (DVI over adapter)
Dual display capable, VGA, DP, or 24-bit LVDS interface (optional)
USB
1x USB 3.0 ports, 2x USB 2.0 ports
LAN
5x GbE ports (Intel i210) on RJ45 , ESD protected connectors, 2x WoL (Wake on LAN)
3x GbE ports (Intel i210) on M12 or fiber (optional)
Serial Ports
1x full modem RS232 port, ESD protected external DB9 connector
1x RS232/485 optional
HDAudio
Intel HDAudio signals, available on a 1 mm header, sound card (HDSOUND-1) is available
Speicher
Speicherschnittstelle
on-board Flash
32GB eMMC on-board soldered Flash (optional up to 64GB)
mSATA
1x mSATA full size card socket, shared with mPCIe
SATA
1x SATA 2.0 ports, all ESD protected (optional)
Mechanische Spezifikation
Gehäusetyp
Kompakt lüfterlos
Montage
DIN-RAIL
Elektrische Spezifikation
Eingangsbereich
8 - 36 VDC input range, ESD and EMC protected power input Over voltage protection, reverse polarity protection, and load dump protection Reset / Power button
Leistungsaufnahme
8-18 Watt, Enhanced Intel Speed Step Technology, all LANs operational
Zündsteuerung / Ignition-Control
Ignition input specifically for vehicles (available on a 4-pin Mini-DIN connector)
Umgebungsbedingungen
Lagertemperatur
-45°C up to +85°C
Betriebstemperatur
-20°C/+60°C
Zertifizierung
Normen
The CEC10 family is designed to meet or exceed the most common standards. Particular references are:
EMC
EN 55022, EN 55024, EN 61000, MIL-STD-461E
Shock & Vibration
EN 60068
Environmental & Safety
EN 50155, MIL-STD-810G, EN 60601, EN 60950
