Dual QMC Carrier PCIe x4 Gen2
SKU:
TPCE210-10R
Fabrikant:
Tews
- Bus-Typ : PCIe
- Steckkartentyp : QMC
Dual QMC Carrier PCIe x4 Gen2
Details
Weitere Informationen

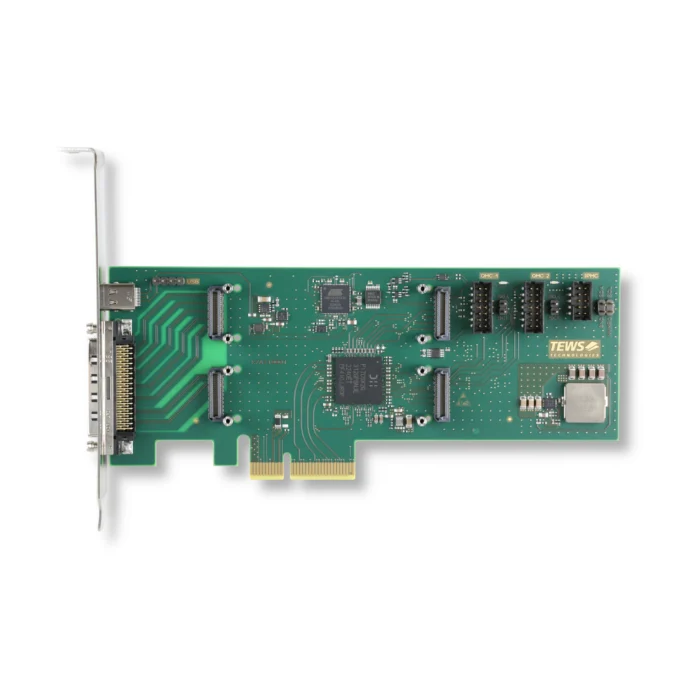

The TPCE210 is a low-profile, half-length PCI Express Revision 2.0 compatible carrier board for two single QMC modules or one double QMC module.
It can be used to build modular, flexible and cost effective I/O solutions for all kinds of applications like process control, medical systems, telecommunication and traffic control.
The TPCE210 is a versatile solution to upgrade any system with a PCI-Express Add-in Card slot to the new QMC standard (VITA 93.0).
The PCI Express x4 Link from the host board is routed to the two QMC sites via a PCI Express switch, allowing the operation of two different single QMCs.
An on-board Management Controller (IPMC) allows access to the QMC’s FRU EEPROM and sensors. Ideal for surveillance of the QMC’s health status.
QMC I/O is accessible through a VHDCI-68 front-panel connector, supporting access to the full 5 IOPIPEs of QMC1 and in addition two IOPIPEs of QMC2.
A unique 14-pin JTAG header is available for each QMC module for debugging purposes. Four JTAG signals (TRST# not included) are routed directly to the QMC site.
|
