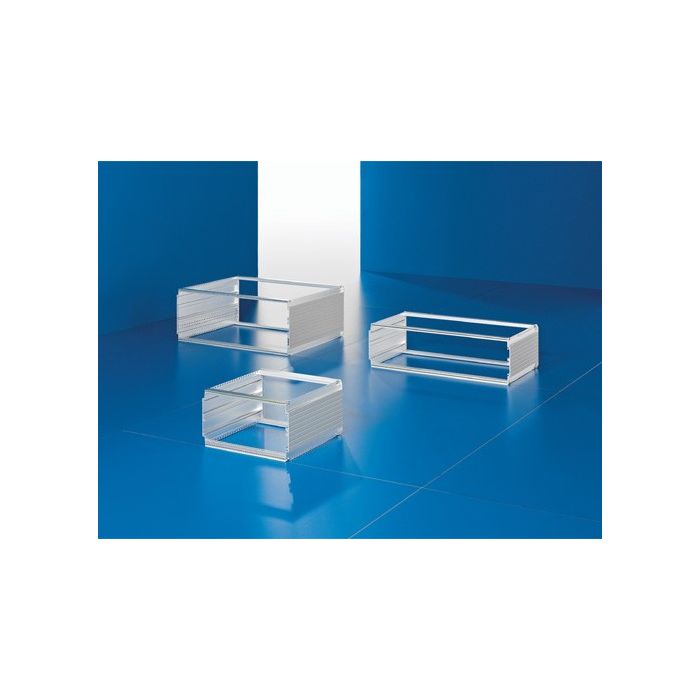

enclosure 3U / 63HP / D305mm

SKU:
3982080
Fabrikant:
HEITEC AG
Lieferzeit auf Anfrage - Preis auf Anfrage
Details
Weitere Informationen
Downloads
Weitere Informationen
  • Produkt Merkmale
    ProduktfamilieHeiPac Vario-Module
    ProduktgruppeHeiPac Vario-Module 3 U
    Tiefe der Seitenwand310,4 mm
    VersionBasic enclosure
    GrifflochNein
    Allgemeine ProduktinformationenTechnical specifications:
    May be used as a rack-mount enclosure or instrument case. External dimensions to IEC 60 297-3 for installation in 482.6 mm (19˝) racks. Installation dimensions for board type plug-in assemblies to IEC 60 297-3-101.

    Material/Surface finish:
    • Side panels: Extruded aluminum section, spray finished in RAL 7035
    • Horizontal rails: Extruded aluminum section, clear-chromated
    • Corner trims: Die-cast zinc, spray-finished in RAL 7035
    • Side trims: Extruded aluminum section, spray-finished in RAL 7035
    Protection category:
    IP 40 for non-vented version. Supply includes:
    • 2 side panels
    • 4 horizontal rails
    • 4 threaded inserts
    • 2 corner trims
    • assembly parts
      • Equipped as an instrument case
      • Equipped as a rack-mount unit
    Note:
    Corner trims, mounting flanges and top and bottom covers must be ordered separately.
    Gewicht1,78 kg
  • Allgemeine Daten
    HerstellerHEITEC AG
    EAN Code4250558932377
    Gewährleistung12 Monate
