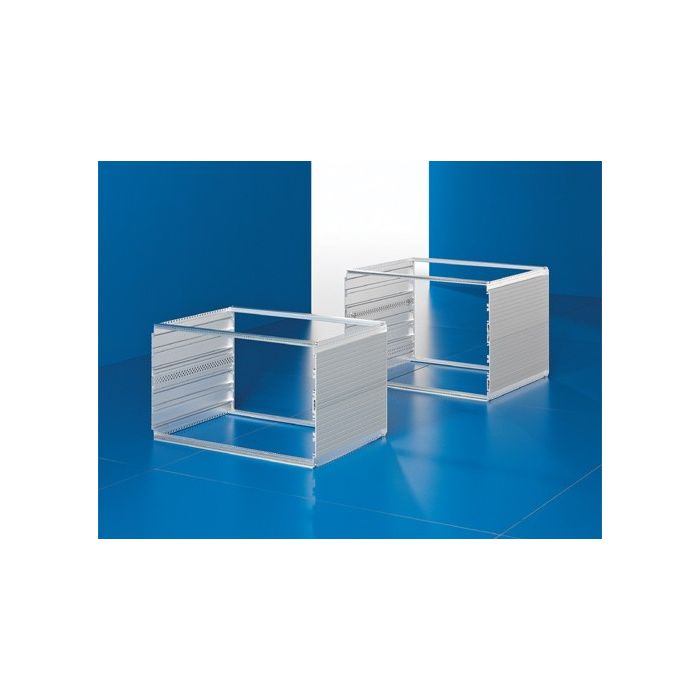

enclosure EMC 4U/84HP/D305mm

SKU:
3983120
Fabrikant:
HEITEC AG
Lieferzeit auf Anfrage - Preis auf Anfrage
Details
Weitere Informationen
Downloads
Weitere Informationen
  • Produkt Merkmale
    ProduktfamilieHeiPac Vario-Module
    ProduktgruppeHeiPac Vario-Module 4 U, 6 U, 7 U, EMC
    Tiefe der Seitenwand310,4 mm
    VersionBasic enclosure
    GrifflochNein
    Allgemeine ProduktinformationenTechnical specifications:
    May be used as a rack-mount enclosure or instrument case. External dimensions to IEC 60 297-3 for installation in 482.6 mm (19˝) racks. Installation dimensions for board type plug-in assemblies to IEC 60 297-3-101. Material/surface finish:
    • Side panels: Extruded aluminum section, spray-finished in RAL 7035
    • Horizontal rails: Extruded aluminum section, clear-chromated
    • Corner trims: Die-cast zinc, spray-finished in RAL 7035
    • Contact points: Conductive
    Protection category:
    IP 40 for non-vented version. Supply includes:
    • 2 side panels
    • 4 horizontal rails
    • 4 threaded inserts
    • 2 rear corner trims
    • 2 side trims centre
    • assembly parts
    Note:
    Corner trims
    Gewicht2,4 kg
  • Allgemeine Daten
    HerstellerHEITEC AG
    EAN Code4250558932827
    Gewährleistung12 Monate
