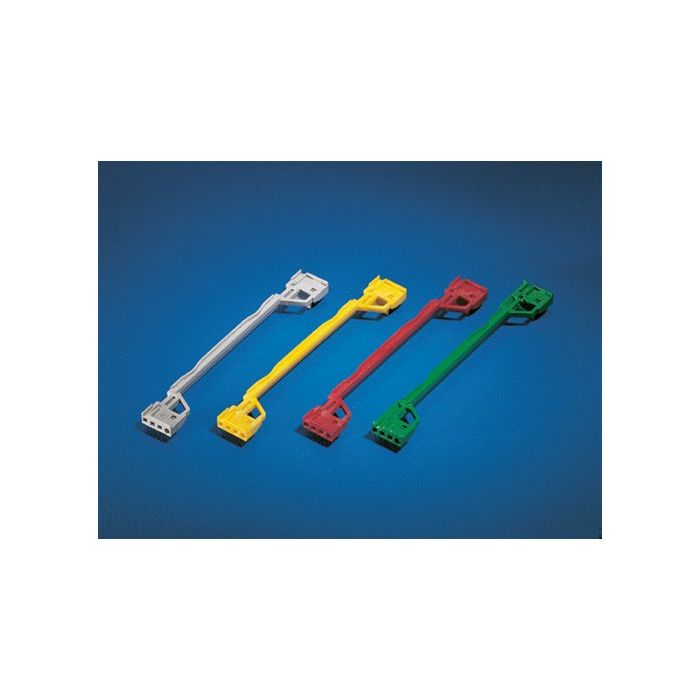

Guide rail 4HP, red, for PCB 160mm

SKU:
3686063
Fabrikant:
HEITEC AG
Lieferzeit auf Anfrage - Preis auf Anfrage
Details
Weitere Informationen
Downloads
Weitere Informationen
  • Produkt Merkmale
    ProduktfamilieGuide rails
    ProduktgruppeKeyable guide rails plastic
    Versionfor PCB depth 160 mm
    GrifflochNein
    Allgemeine ProduktinformationenGuide rails 4 HP, keyable, to IEEE 1101.10.
    • For 1.6 – 2.0 mm nominal thickness
    • Chambers for the installation of keys
    • Option of installing ESD contacts to discharge static charges
    • Narrow design for maximum air flow
    • Various color variants to identify the slots:
      • Red for system slot
      • Green for power supply
      • Yellow and grey for board-type plug-in units
    • ESD contact for guide rails
    • ESD contact for front panel
    • Keys

    Material:
    Polycarbonate, base material to UL 94-V0

    Note:
    Only for use in conjunction with type IV, IVs, VII injector/extractor handles.
    Gewicht0,007 kg
  • Allgemeine Daten
    HerstellerHEITEC AG
    EAN Code4250558906880
    Gewährleistung12 Monate
