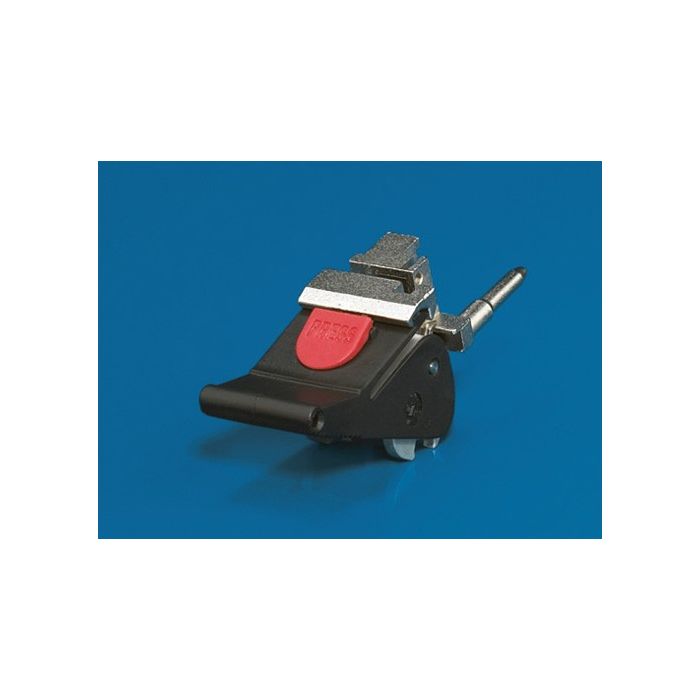

Handle IV`s bottom w.out 1/2HP offset

Lieferzeit auf Anfrage - Preis auf Anfrage
Weitere Informationen
Weitere Informationen
  • Produkt Merkmale
    ProduktfamilieFront panels, Handles
    ProduktgruppeHandle Type Ivs
    VersionInstallation bottom, without offset
    Allgemeine ProduktinformationenWith push-button
    For inserting and removing connectors with a large number of pins. A metal insert ensures reliable functioning, even at forces of up to 815 N.
    • Insertion/removal function
    • Push-button for locking and unlocking the board type plug-in unit (cannot be extracted in the locked position)
    • Optionally with ½ HP offset PCB attachment, e. g. for component mounting on both sides
    • Optional integral micro-switch for “live insertion” applications
    • ES D pin to dissipate static charges before contacting the connectors and for precise positioning of the board type plug-in unit
    • Keyable
    • Integral PCB attachment
    • Bayable
    Material: Plastic/metal

    Supply includes: Assembly parts.

    • Insertion only when used with front horizontal rails, with 10 mm extension (B, B1, B2)
    • With 3 U front panels, only one extractor handle is required.
    Gewicht31,3 gr.
  • Allgemeine Daten
    HerstellerHEITEC AG
    EAN Code4250558931196
    Gewährleistung12 Monate
