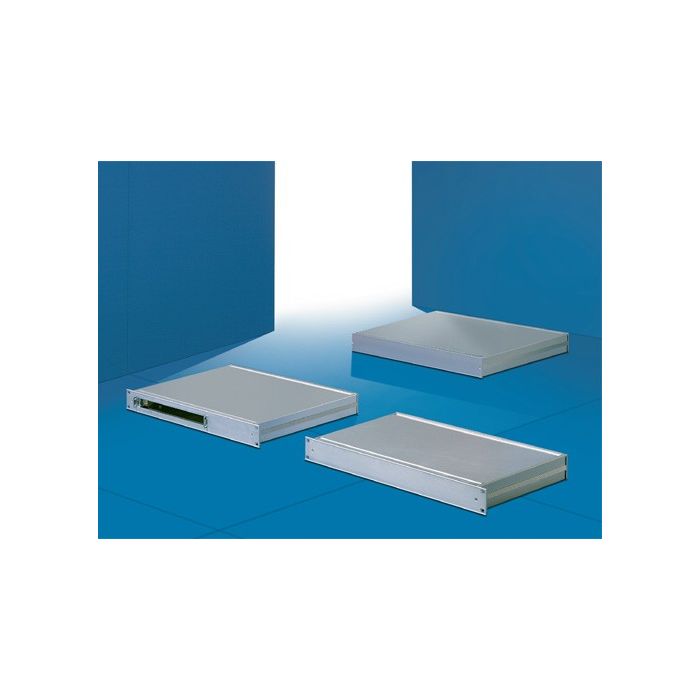

HeiBox Chassis 1U/19"/350mm

SKU:
3687823
Fabrikant:
HEITEC AG
Lieferzeit auf Anfrage - Preis auf Anfrage
Details
Weitere Informationen
Downloads
Weitere Informationen
  • Produkt Merkmale
    ProduktfamilieHeiBox
    ProduktgruppeHeiBox ALU
    Breite (mm)350 mm
    GrifflochNein
    Allgemeine ProduktinformationenTechnical specifications:
    System enclosures 1 U, 150,200, 250, 300, 350 mm deep Easy to assemble with just4 screws. Optionally for use as an instrument case or 19˝ rackmountenclosure. Front panel to hold an overlayto conceal the screws. Maximum interior space.Optional EMC upgrades with additional EMC gaskets.Option of installing 1 VME or CPCI board horizontally.

    Design:

    System enclosure 1 U,
    to IEC 60 297-3. Optionally available for 19˝ rackmounting
    in the enclosure or as an instrument case version.
    1. Equipped as an instrument case
    2. Equipped as a rackmount unit
    Material/surface finish:
    • Side panels: Extruded aluminum section, untreated
    • Base/cover trays: Aluminum, clear-chromated
    • Front/rear panel: Extruded aluminum section, clear-chromated
    • Mounting plate: Sheet steel
    Gewicht2,18 kg
  • Allgemeine Daten
    HerstellerHEITEC AG
    EAN Code4250558909225
    Gewährleistung12 Monate
