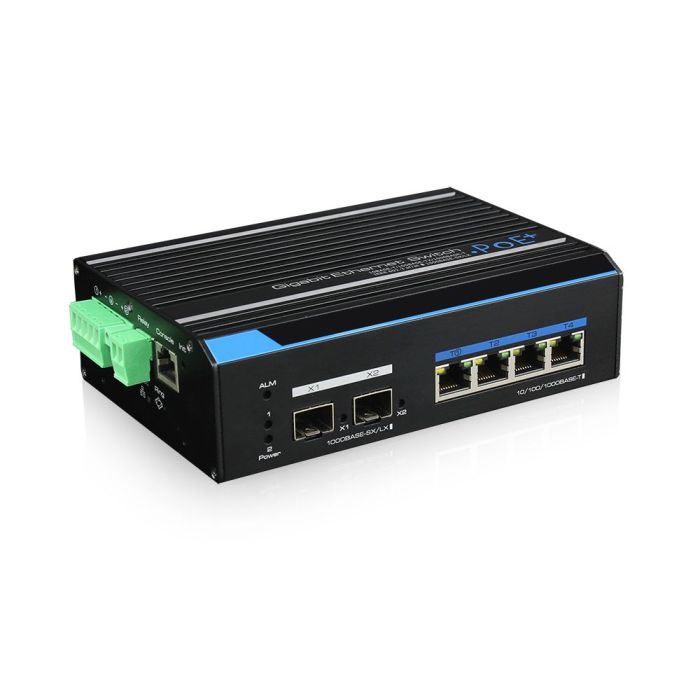

Industrial Full Gigabit Managed PoE Switch

SKU:

UTP7304GE-POE

Fabrikant:

Utepo

Hersteller : Utepo
Schaltertyp : Managed Switch

Lokaal op voorraad

Zur Vergleichsliste hinzufügen

Details

Weitere Informationen

Downloads

Weitere Informationen

Wesentliche Merkmale

Hauptmerkmale

• Provide 4* 10/100/1000Base-T RJ45 ports (PoE), 2 * 1000BASE-X SFP port
• Buffer reaches 4Mbit, Support 4K high-definition video transmission
• PoE function: 1 port 60W HPoE, 3 ports 30W PoE
• Support Web-based network management, support VLAN, QoS, RSTP, SNMP etc. network function; l Support fast ring , support 30 pcs switches Max. in a cascade system , Self-healing in 20ms Min.
• Support one-key Fast-Ring setup, 2 SFP ports developed a fast-ring.
• Support relay alarm for power off, network broken, PoE off ； l 6KV surge immunity, 8KV ESD protection and anti-interference ability
• -40℃～75℃ working temperature

Ports & Schnittstellen

Schaltertyp	Managed Switch
LAN-Anschlüsse	6
Switch Architecture	• Switch bandwidth: 24Gbps
Übertragungsrate	• Copper Ports: 4* 10/100/1000Base-T PoE RJ45 (Auto-MDI/MDI-X) • SFP Ports: 2* 1000 Base-X SFP (Mini-GBIC)
PoE verfügbar	Ja
PoE-Leistung	• PoE Standard: T1 HPoE 60W max (also support 802.3af/at) , T2～T4 802.3af/at 30W max POE Management • Support Total Power Consumption Control • Support PoE ON/OFF • Support Single Port 60W max. Power Change and Port Output Priority

Mechanische Spezifikation

Abmessungen 159mm (l) × 110mm (w) × 46.5mm (h)
Montage • Installation: On desk; Din-rail; Wall hung
Produkt Merkmale

Gewicht 1.5kg

Umgebungsbedingungen

Lagertemperatur	• -40-85℃
Betriebstemperatur	-40°C/+75°C
Relative Luftfeuchtigkeit	• Humidity: 5%-95% (Non-condensing)

Zertifizierung

Normen	EMI • FCC Part 15, CISPR (EN55022) class A EMC • Surge level-4 IEC61000-4-5 • ESD level-4 (8KV/10KV) IEC61000-4-2 • RS level-4 IEC61000-4-3 • EFT level-4 IEC61000-4-4 • CS level-3 IEC61000-4-6 • M/S level-5 IEC61000-4-8

Allgemeine Daten

Hersteller Utepo
Gewährleistung 24 Monate

Downloads

Handbuch	User%20Manual%20UTP7304GE-POE%20V1.0.pdf
Datenblatt	UTP7304GE-POE%20Datasheet%20V1.2.pdf

395,08 € 332,00 €
