IPC 4U/19"/440mm ATX for front conn.

SKU:
3659700
Fabrikant:
HEITEC AG
Lieferzeit auf Anfrage - Preis auf Anfrage
Details
Weitere Informationen
Downloads
Weitere Informationen
  • Produkt Merkmale
    ProduktfamilieIndustrial PC chassis
    ProduktgruppeATX with front connection for 19˝-Installation, 4 U
    Breite (mm)482,6 mm (19")
    Version442,5 mm total depth
    GrifflochNein
    Allgemeine ProduktinformationenTechnical specifications:

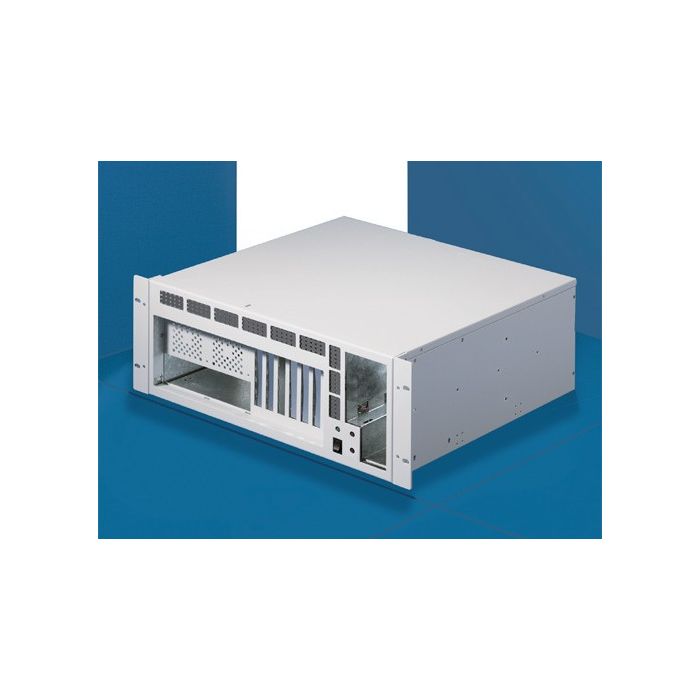

    • 482.6 mm (19˝ ) rack-mount system for the installation of ATX/Mini-ATX or Micro-ATX boards and 1 x 5¼˝ and 1 x 3½˝ drives.
    • Width: 482.6 mm (19˝ )
    • Height: 4 U
    • Flanges: 177.0 mm
    • Side panels: 174.0 mm
    • Total depth: 442.5 mm
    • Connections for I/Os, front EMC prepared. Suitable for mounting on slide rails.

    Material/surface finish:
    • Case, covers
    • 1.2 mm sheet steel,
    • spray-finished in RAL 7035, unpainted contact points
    Standards: Complies with IEC 60 297-3 and ATX specification 2.01 Special designs available on request.

    Supply includes:
    • Rack-mount system 4 U, including drive holder
    • 19˝ flanges
    • 2 x 120 mm fans
    • ATX power pack 300 W
    • LED displays
    • Reset button
    • On/off switch
    • Cover
    • Rear panel with cutout and connection for power pack
    • Mounting bar for card retainer
    • Drive holder for 1 x 5¼˝ and 1 x 3½˝
    • Drive holder for 3 x 3½˝ hard drives
    Gewicht13,8 kg
  • Allgemeine Daten
    HerstellerHEITEC AG
    EAN Code4250558900796
