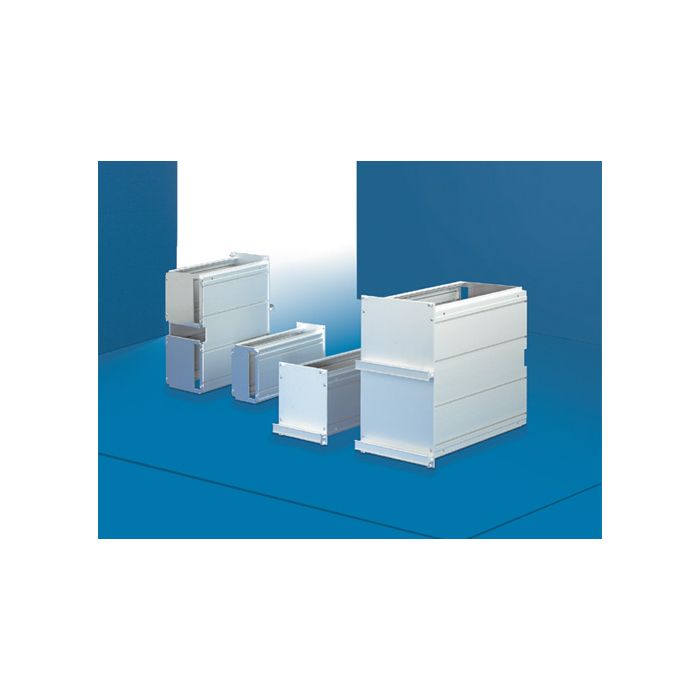

Module Type 1 3U/14HP/BD 220mm, KIT

SKU:
3653220
Fabrikant:
HEITEC AG
Lieferzeit auf Anfrage - Preis auf Anfrage
Details
Weitere Informationen
Downloads
Weitere Informationen
  • Produkt Merkmale
    ProduktfamilieBox-type plug-in unit
    ProduktgruppeBox-type plug-in units Type I
    GrifflochNein
    Allgemeine ProduktinformationenTechnical specifications:
    • Installation depth: 160 and 220 mm
    • Height: 3 U and 6 U to IE C 60 297-3
    • Rear panel to accommodate single connectors

    Material:
    • Front panel: 2.5 mm aluminum, pure anodized
    • Real panel: 2 mm aluminum, untreated
    • Side panel profile: extruded aluminum profile, pure anodized
    • Handle: aluminum, pure anodized
    • PCB holder: plastic

    Available on request:
    • box type plug-in units in special sizes or printed
    • EMC box type plug-in units with EMC front panels
    Gewicht0,6 kg
  • Allgemeine Daten
    HerstellerHEITEC AG
    EAN Code4250558926710
