NR300-4G 4G LTE, Dual SIMs, 1xEth, 1xRS232 (3 PIN), 1xRS485

SKU:
A301430
Fabrikant:
NavigateWorx
  • Anwendung : Automatisierung, Digital Signage, IoT, Fahrzeugtechnik
  • Schaltertyp : Gateways
  • WLAN : Without
  • Mobilfunknetz : 2G, 3G, 4G
NR300-4G 4G LTE, Dual SIMs, 1xEth, 1xRS232 (3 PIN), 1xRS485
Auf Lager
Details
Weitere Informationen
Downloads

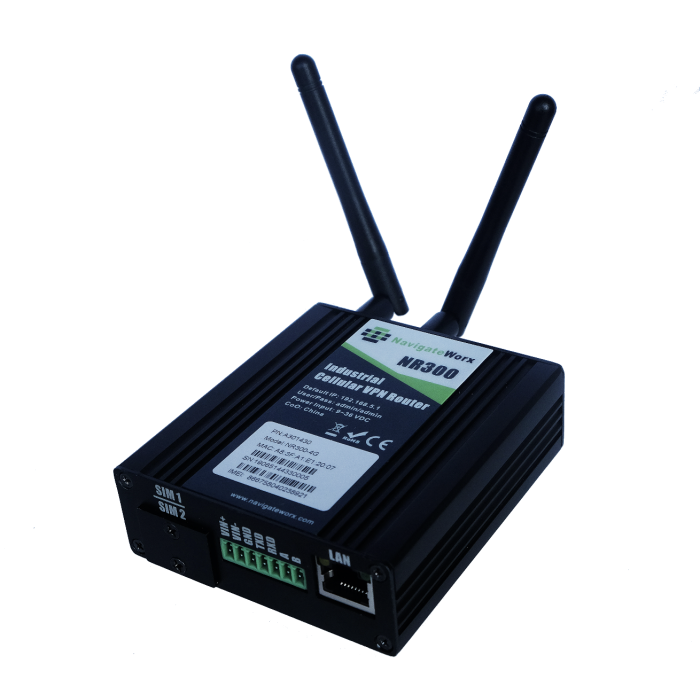

NAVIGATEWORX NR300

Intelligent 4G LTE VPN Router, Industrial Design,
Dual SIM Failover, RS232 and RS485 Serial connection

Navigateworx NR300 industrial cellular VPN router enables wireless data connectivity over public
and private LTE cellular networks at 4G speeds.

NR300 router has dual SIM backup, 1 LAN ports, RS232 and RS485 interfaces are provided to support
Serial to IP communication. NR300 router supports 9 to 36 VDC wide range power inputs, designed
with reverse-voltage protection mechanism for greater reliability. It is an advanced choice for
universal wireless M2M applications with reliable features for data transmission.
Weitere Informationen
  • Wesentliche Merkmale
    Hauptmerkmale● Wireless Mobile Broadband 2G / 3G / 4G Connection
    ● Connection manager ensure seamless communication
    ● Support Multiple VPN tunnels for data encryption
    ● Power Input Range 9 to 36 VDC
    ● Industrial design for harsh environment
    ● Aluminum casing and din-rail installation
    ● User friendly web interface for user interaction
    ● Support Central Management Platform
    ● Reduce high costs for onsite maintenance
  • Ports & Schnittstellen
    SchaltertypGateways
    Mobilfunknetz2G, 3G, 4G
    WLANWithout
    LAN-Anschlüsse1
    Serielle Schnittstellen2
    Externe I/OLan
    1 x LAN, Auto 10/100 Mbps

    Serial
    1x RS-232 (3 PIN)
    1 x RS-485

    Sim
    2 x SIM slots, 1.8V / 3V
  • Mechanische Spezifikation
    GehäusetypIP30
    Abmessungen82.8 mm x 93.3 mm x 28.8 mm
    MontageDIN-rail mounting
  • Produkt Merkmale
    Gewicht200g
  • Elektrische Spezifikation
    Eingangsbereich9 to 36 VDC
    LeistungsaufnahmeIdle: 50 mA@12 V</br> Data link: 200 mA (peak) @12 V
  • Umgebungsbedingungen
    Lagertemperatur-40°C/+75°C
    Betriebstemperatur-40°C/+75°C
    Relative Luftfeuchtigkeit5% to 95% non-condensing
  • Zertifizierung
    ZertifikateApproval
    EMI
    EN 55032:2012 Class B

    EMS
    IEC 61000-4-2 ESD Level 4
    IEC 61000-4-3 RS Level 3
    IEC 61000-4-4 EFT Level 3
    IEC 61000-4-5 Surge Level 3
    IEC 61000-4-6 CS Level 3
    IEC 61000-4-12 Level 3

    Vibration
    EN50155
  • Allgemeine Daten
    HerstellerNavigateWorx
    AnwendungAutomatisierung, Digital Signage, IoT, Fahrzeugtechnik
    Gewährleistung24 Monate
