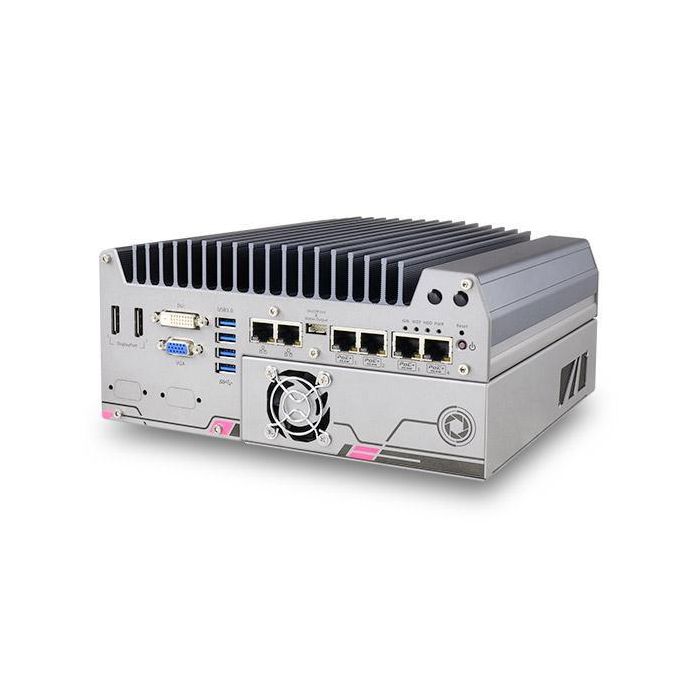

Introducing the most powerful vision controller ever built! Nuvis-5306RT integrates every single function you need for machine vision applications in a compact footprint, including exceptional computing power, built-in camera interfaces and real-time vision-specific I/O control.
To ensure high quality images, a MV system requires accurate interaction between lighting, camera, actuator and sensor devices. Nuvis-5306RT integrates LED lighting controller, camera trigger, encoder input, PWM output and digital I/O, to connect and control all the vision devices. All the vision-specific I/O are managed by Neousys’ patented MCU-based architecture and DTIO/NuMCU firmware to guarantees microsecond-scale real-time I/O control.
Computing power is another crucial requirement for a vision system. In addition to the remarkable performance brought by its Intel® 6th Gen Core™ i7/i5 CPU, Nuvis-5306RT can further accommodate NVIDIA® 75W TDP GPU to leverage GPU-accelerated vision library or deep-learning vision software. Combining built-in PoE+ and USB 3.1 Gen1 interfaces and the expandability for CameraLink and CoaXPress, Nuvis-5306RT is the ideal platform for demanding MV applications..
● Intel® 6th Gen Core™ i7/i5 65W/35W CPU, up to 32 GB DDR4
● Integrated vision-specific I/O
4-CH CC/CV lighting controller
4-CH camera trigger outputs
1-CH quadrature encoder input
8-CH isolated DI and 8-CH isolated DO
● Patented MCU-based, real-time I/O control by DTIO V2 and NuMCU
● Built-in camera interfaces
4-CH IEEE 802.3at Gigabit PoE+ ports
4-CH USB 3.1 Gen1 ports
● Supports NVIDIA 75W GPU for GPU-accelerated MV
Operating Temperature:
with i7-6700TE, i5-6500TE (35W TDP)
-25°C ~ 60°C **
with i7-6700, i5-6500 (65W TDP)
-25°C ~ 60°C */
** (configured as 35W CPU mode)
-25°C ~ 50°C */
** (configured as 65W CPU mode)
*For i7-6700 running at 65W mode, the high operating temperature shall be limited to 50°C and thermal throttling may occur when sustained full-loading applied. Users can configure CPU power in BIOS to obtain higher operating temperature.
**For sub-zero operating temperature, a wide temperature HDD drive or Solid State Disk (SSD) is required.
Humidity
10%~90% , non-condensing
Erweiterungsmöglichkeiten
Erweiterungssteckplätze
PCI-E
1x PCIe x16 slot @ Gen3, 8-lanes
PCIe signals in Cassette, supporting
- 75W NVIDIA® GPU card
- COTS CameraLink and CoaXPress camera
Mini PCI-E
1x internal mini PCI Express socket with front-accessible SIM socket
1x internal mini PCI Express socket with internal SIM socket (mux with mSATA)
Ports & Schnittstellen
LAN-Anschlüsse
6
Serielle Schnittstellen
3
USB 2.0-Anschlüsse
4
USB 3.x-Anschlüsse
4
Audio-Interface
Due to component scarcity, no audio on this device
Externe I/O
LAN
6x Gigabit Ethernet ports by Intel® I219 and 5x I210
USB
4x USB 2.0
4x USB 3.1 Gen1
Serial Port
2x software-programmable RS-232/422/485 port (COM1 & COM3)
1x RS-232 port (COM2)
PoE verfügbar
Ja
PoE-Leistung
IEEE 802.3at PoE+ PSE on GigE Port
3 ~ Port 6, 80 W total power budget
Speicher
RAID
0, 1
Speicherschnittstelle
SATA HDD
2x Internal SATA port for 2.5” HDD/SSD
installation, supporting RAID 0/1
mSATA
1x full-size mSATA port (mux with mini-PCIe)
