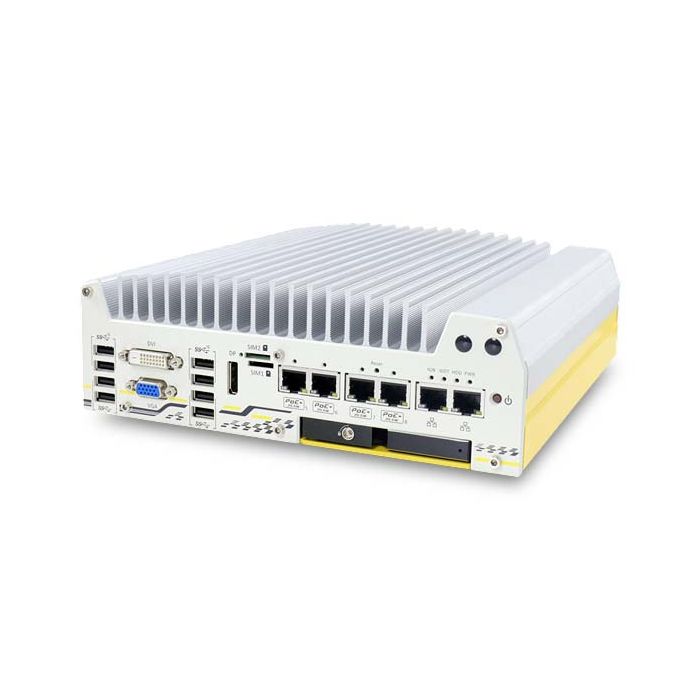

Nuvo-7108 VTC Intel 8th Gen Core i7/i5/i3 4xM12 PoE + ports
-
Prozessor-Typ :
Intel Core
-
Max. Speicher :
64GB
-
Betriebstemperatur :
-40°C/+85°C
Kontaktieren Sie uns für die Lieferzeit
Configure this system
Details
Weitere Informationen
Downloads
Weitere Informationen
-
Prozessor
| Prozessor-Typ | Intel Core |
|---|
| Prozessor-Serie | Coffee lake |
|---|
| Sockeltyp | LGA1151 |
|---|
| Taktfrequenz | 3.20 GHz - 4.60 GHz (Intel® Core™ i7-8700) |
|---|
| Anzahl Cores | 6 |
|---|
| TDP | 65 W |
|---|
| Chipsatz | Q370 |
|---|
-
Arbeitsspeicher
| Speichertyp | DDR4 |
|---|
| Speichersteckplätze | 2 |
|---|
| Max. Speicher | 64GB |
|---|
-
Video
| Chipsatz | Integrated Intel® HD Graphics 630 |
|---|
-
Erweiterungsmöglichkeiten
| Erweiterungssteckplätze | Mini PCI-E
1x full-size mini PCI Express socket with internal SIM socket (mux with mSATA)
2x full-size mini-PCIe sockets (USB signals only) with internal SIM sockets
M.2
2x M.2 2242 B key socket, one with dual front-accessible SIM sockets, supporting dual SIM mode with selected M.2 LTE module |
|---|
-
Ports & Schnittstellen
| LAN-Anschlüsse | 2 |
|---|
| Serielle Schnittstellen | 4 |
|---|
| Audio-Interface | Due to component scarcity, no audio on this device |
|---|
| Externe I/O | Ethernet
2x Gigabit Ethernet ports by Intel® I219 and I210
PoE+
4x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I210
- M12 x-coded connector (Nuvo-7100VTC);
- RJ45 connector (Nuvo-7104VTC)
8x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I210
- RJ45 connector (Nuvo-7108VTC)
CAN
1x isolated CAN 2.0 port
Isolated DIO
4x isolated DI and 4x isolated DO
USB
4x USB 3.1 Gen2 (10 Gbps) ports
4x USB 3.1 Gen1 (5 Gbps) ports
Video Port
1x VGA connector, supporting 1920 x 1200 resolution
1x DVI-D connector, supporting 1920 x 1200 resolution
1x DisplayPort connector, supporting 4096 x 2304 resolution
Serial Port
2x software-programmable RS-232/422/485 ports (COM1/ COM2)
2x RS-232 ports (COM3/ COM4)
Audio
1x Mic-in and 1x speaker-out |
|---|
| PoE verfügbar | Ja |
|---|
| PoE-Leistung | PoE+
4x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I210
- M12 x-coded connector (Nuvo-7100VTC);
- RJ45 connector (Nuvo-7104VTC)
8x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I210
- RJ45 connector (Nuvo-7108VTC) |
|---|
-
Speicher
| RAID | 0, 1 |
|---|
| Speicherschnittstelle | SATA HDD
1x hot-swappable HDD tray for 2.5" HDD/ SSD installation
1x Internal SATA port for 2.5" HDD/ SSD installation, supporting RAID 0/ 1
mSATA
1x full-size mSATA port (mux with mini-PCIe)
M.2
1x M.2 2280 M key socket (PCIe Gen3 x4) for NVMe SSD or Intel® Optane™ memory installation |
|---|
-
Mechanische Spezifikation
| Gehäusetyp | Kompakt lüfterlos |
|---|
| Abmessungen | 240 mm (W) x 225 mm (D) x 84 mm (H) |
|---|
| Montage | Neousys' patented damping bracket (standard) or optional DIN-rail mounting |
|---|
-
Produkt Merkmale
-
Elektrische Spezifikation
| Eingangsbereich | 1x 3-pin pluggable terminal block for 8~35V DC input (IGN/ GND/ V+) |
|---|
-
Umgebungsbedingungen
| Lagertemperatur | -40°C ~ 85°C |
|---|
| Betriebstemperatur | -40°C/+85°C |
|---|
-
Zertifizierung
| Normen | Vibration
Operating, MIL-STD-810G, Method 514.6, Category 4
Shock
Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II
EMC
EN 50155 (Nuvo-7100VTC),
E-Mark (Nuvo-7108VTC)
CE/FCC Class A, according to EN 55022 & EN 55024 |
|---|
-
Allgemeine Daten
| Hersteller | Neousys |
|---|
| Anwendung | Fahrzeugtechnik |
|---|
| Gewährleistung | 24 Monate |
|---|
|
