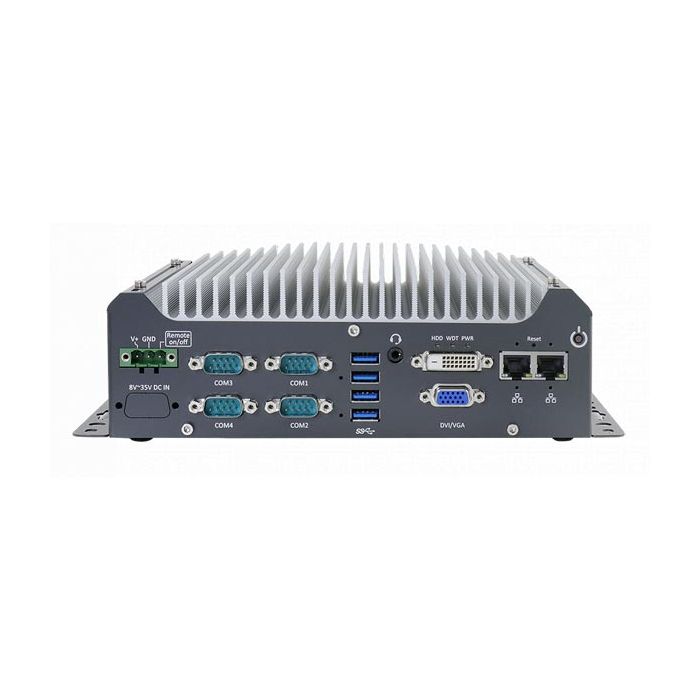

Nuvo-7501 9th gen Core, Fanless, 2 xGbE, 4xCOM
-
SKU :
SCA-990944-CX
-
Prozessor-Typ :
Intel Core
-
Max. Speicher :
32GB
-
Betriebstemperatur :
-25°C/+60°C
Note: Not recommended for new designs. For new projects we recommend successor Nuvo-11000 or 9000 series. Please contact us for more information.
Due to component scarcity, no audio on this device
Neem contact met ons op voor de levertijd
Configure this system
Details
Weitere Informationen
Downloads
Weitere Informationen
-
Prozessor
| Prozessor-Typ | Intel Core |
|---|
| Prozessor-Serie | Coffee lake |
|---|
| Sockeltyp | LGA1151 |
|---|
| Taktfrequenz | 1,8 GHz |
|---|
| Anzahl Cores | 8 |
|---|
| TDP | 35 W |
|---|
| Chipsatz | H310 |
-
Arbeitsspeicher
| Speichertyp | DDR4 |
|---|
| Speichersteckplätze | 1 |
|---|
| Max. Speicher | 32GB |
-
Video
| Anschlüsse | • 1x VGA connector, supporting 1920 x 1200 resolution
• 1x DVI-D connector, supporting 1920 x 1200 resolution |
|---|
| Chipsatz | Integrated Intel® UHD graphics 630 |
-
Wesentliche Merkmale
| Hauptmerkmale | • Compact 255 x 173 x 76 mm footprint
• Intel® 9th/ 8th-Gen Core™ 35W LGA1151 CPU
• Rugged, -25°C to 60°C fanless operation
• 2x GbE and 4x USB3.0
• 2x RS-232/422/485 and 2x RS-232 ports
• VGA + DVI dual display outputs
• Supports 1x M.2 2280 SSD (SATA signal)
• Supports 1x 3.5" or 2.5" SATA HDD/ SSD
|
-
Erweiterungsmöglichkeiten
| Erweiterungssteckplätze | • 1x full-size mini PCI Express socket
• 1x M.2 2242 B key socket with internal SIM socket |
-
Ports & Schnittstellen
| SATA-Schnittstelle | 1x M.2 2280 SATA interface |
|---|
| LAN-Anschlüsse | 2 |
|---|
| Serielle Schnittstellen | 4 |
|---|
| Audio-Interface | 1x 3.5 mm jack for mic-in and speaker-out |
|---|
| Externe I/O | • 2x software-programmable RS-232/ 422/ 485 ports(COM1/ COM2)
• 2x RS-232 ports (COM3/ COM4) |
-
Speicher
| Speicherschnittstelle | SATA HDD
• 1x internal SATA port for 3.5” HDD or 2.5” HDD/ SSD
M.2
• 1x M.2 2280 SATA interface |
-
Mechanische Spezifikation
| Gehäusetyp | Metallgehäuse |
|---|
| Abmessungen | 255mm (W) x 173 mm (D) x 76 mm (H) |
|---|
| Montage | Wall-mount or optional DIN-Rail |
-
Produkt Merkmale
-
Elektrische Spezifikation
| Eingangsbereich | 1x 3-pin pluggable terminal block for 8~35VDC DC input |
-
Umgebungsbedingungen
| Lagertemperatur | -40°C ~85°C |
|---|
| Betriebstemperatur | -25°C/+60°C |
-
Zertifizierung
| Normen | Vibration
• Operating, MIL-STD-810G, Method 514.6, Category 4
Shock
• Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II
EMC
• CE/FCC Class A, according to EN 55032 & EN 55024 |
-
Software Support
| Betriebssystem | Windows 10 IoT |
-
Allgemeine Daten
| Hersteller | Neousys |
|---|
| Anwendung | Automatisierung, IoT |
|---|
| Gewährleistung | 24 Monate |
|
