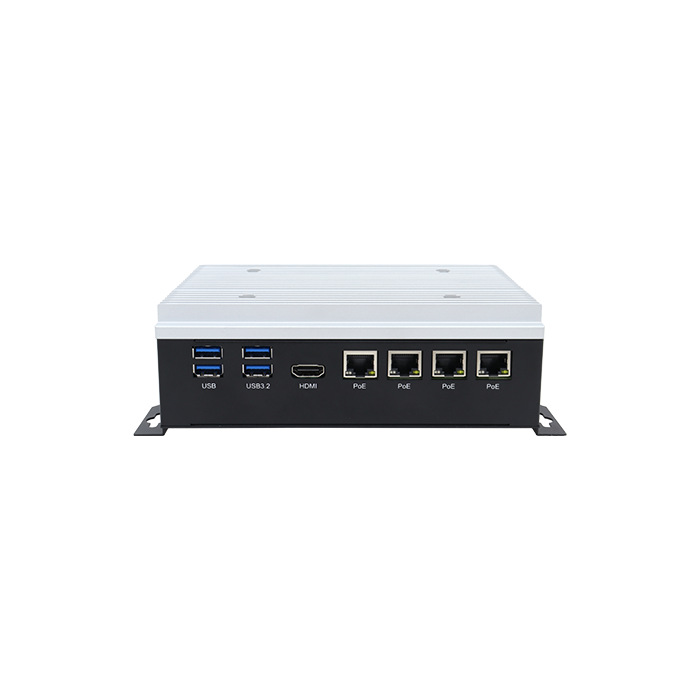

Nvidia Jetson Orin NX 16GB 4xGLAN 4xUSB 4xM.2 SIM CANBus

SKU:
AITAS-EN303
Fabrikant:
Aplex
  • SKU : AITAS-EN303
  • Prozessor-Typ : NVIDIA Jetson
  • Max. Speicher : 16GB
  • Betriebstemperatur : -15°C/+60°C
Nvidia Jetson Orin NX 16GB 4xGLAN 4xUSB 4xM.2 SIM CANBus
Lieferzeit auf Anfrage - Preis auf Anfrage
Details
Weitere Informationen
Downloads
AITAS-EN303
AITAS-EN303, powered by Jetson Orin NX 16G, is a reliable and powerful AI inference device designed for edge applications. It delivers full bandwidth and power capabilities, efficiently scaling video inputs for seamless AI inference.
Weitere Informationen
  • Prozessor
    Prozessor-TypNVIDIA Jetson
    Prozessor-SerieNVIDIA® Jetson Orin™ NX
    Taktfrequenz8-Core ARM Cortex A78AE: max. 2GHz
    Anzahl Cores8
    TDP40W
    ChipsatzSoC
  • Arbeitsspeicher
    SpeichertypLPDDR5
    Max. Speicher16GB
  • Video
    AnschlüsseHDMI
    1x HDMI 2.0 Type A
    Chipsatz1024 Core NVIDIA Ampere, with 32 Tensor Cores
  • Wesentliche Merkmale
    HauptmerkmaleFeatures
    • NVIDIA Jetson Orin NX 16GB
    • 1x M.2 2280 M-Key
    • 1x RJ-45 GbE Ports
    • Wide Power Input Range 12~24V DC
    • Operating temperature -15°C ~ +60°C
    • Fanless Design
  • Erweiterungsmöglichkeiten
    ErweiterungssteckplätzeM.2
    1x M.2 2280 M-Key (NVMe)
    1x M.2 3042/3052 B-Key
    1x M.2 2230 E-Key

    SIM Slot
    1x SIM Slot
  • Ports & Schnittstellen
    LAN-Anschlüsse5
    Serielle Schnittstellen2
    USB 3.x-Anschlüsse4
    Externe I/OEthernet Ports
    1x RJ-45 GbE Port
    4x RJ-45 GbE PSE (IEEE 802.3af compliant, Max.60W)

    USB
    4x USB 3.2 Gen2 Type A
    1x Micro USB (for OS Flash)

    Serial / CANBus / DIO
    1x DB-9 for RS-232 (Rx/Tx/CTS/RTS) / 1x CANBus 2.0
    1x DB-15 for RS-232 (Rx/Tx)/422/485 / 8x DIO

    Antenna
    2x Antenna
    PoE verfügbarJa
    PoE-LeistungPoE Capability
    4x RJ-45 GbE PSE (IEEE 802.3af compliant, Max.60W)
  • Speicher
    SpeicherschnittstelleM.2
    1x M.2 2280 M-Key
  • Mechanische Spezifikation
    Abmessungen180mm (W) x 136mm (D) x 56mm (H)
    MontageWallmount, DinRail
  • Elektrische Spezifikation
    EingangsbereichDC-in 12~24V DC / 2 pins terminal block
    LeistungsaufnahmeFull Loading : 120W (19V @ 6.32A)
  • Umgebungsbedingungen
    Lagertemperatur-40°C/+85°C
    Betriebstemperatur-15°C/+60°C
  • Zertifizierung
    ZertifikateCE / FCC Class A
  • Allgemeine Daten
    HerstellerAplex
    AnwendungAutomatisierung
    Gewährleistung24 Monate
