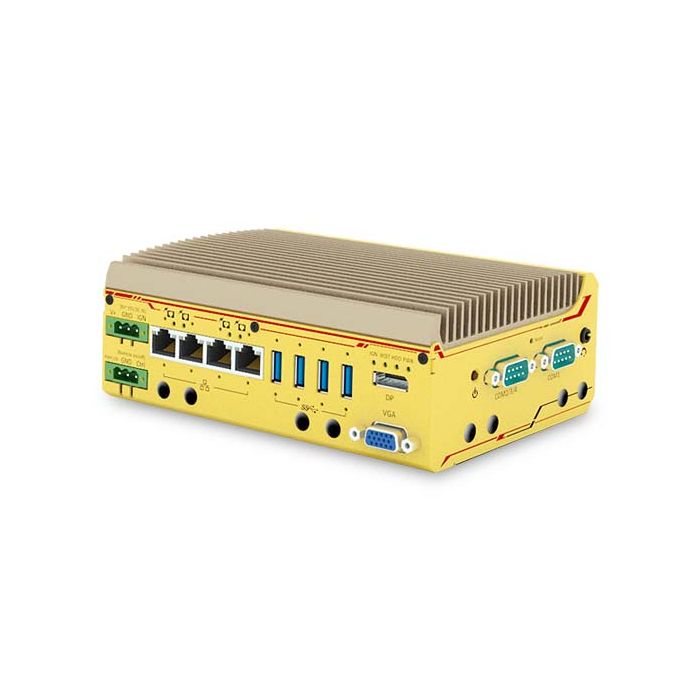

Der POC-551VTC ist ein ultrakompakter, lüfterloser Fahrzeug-Controller der nächsten Generation, der eine in diesem Formfaktor noch nie dagewesene Leistung bietet.
Ausgestattet mit dem AMD Ryzen™ Embedded V1000 4-Core/8-Thread-Prozessor (V1605B) bietet der POC-551VTC eine bis zu dreifache CPU-Leistung im Vergleich zur vorherigen POC-Serie. Er kombiniert hohe Leistung, außergewöhnliche Zuverlässigkeit und Erschwinglichkeit für vielseitige Anwendungen im Fahrzeug.
Der POC-551VTC bietet vier 802.3at PoE+ Ports, die Geräte wie IP-Kameras mit 25 W versorgen. Da drahtlose Konnektivität für moderne Fahrzeuganwendungen unerlässlich ist, eignet sich der POC-551VTC mit einer eingebauten M.2 und drei Mini-PCIe Slots besonders für den Einsatz im Fahrzeug. Außerdem sind ein CAN-Bus für die Kommunikation im Fahrzeug und isolierte DIO für die Steuerung von Sensoren/Aktoren integriert.
Durch die Kombination von Zündungssteuerung und Weitbereichs-Gleichstromeingang mit hervorragender Leistung bietet der POC-551VTC eine perfekte Lösung für alle Ihre Anforderungen an Fahrzeuganwendungen in einer extrem kompakten Größe!
Weitere Informationen
Prozessor
Prozessor-Typ
AMD
Prozessor-Serie
Ryzen Embedded V Series
Taktfrequenz
2.00 GHz
Anzahl Cores
4
TDP
25W
Arbeitsspeicher
Speichertyp
DDR4
Speichersteckplätze
2
Max. Speicher
16GB
Video
Anschlüsse
1x VGA connector, supporting 1920 x 1200 resolution
1x DisplayPort connector, supporting 4096 x 2160 resolution
Chipsatz
Vega GPU with 6 compute units
Wesentliche Merkmale
Hauptmerkmale
● AMD Ryzen™ embedded V1605B quad-core 15W CPU
● -40°C to 70°C rugged wide temperature fanless operation
● Four IEEE 802.3at PoE+ ports with screw-lock
● One isolated CAN bus port for in-vehicle communication
● One M.2 socket and three mPCIe sockets
● M.2 2280 M key NVMe (Gen3 x2) socket for fast storage access
● 4-CH isolated DI and 4-CH isolated DO
● 8~35V DC input with built-in ignition power control
● E-Mark(E13 No. 10R-0615611) and EN 50155/ EN 45545 certificate
Erweiterungsmöglichkeiten
Erweiterungssteckplätze
Mini PCIe
3x full-size mini PCI Express socket with internal SIM socket
M.2
M.2 1x M.2 2242 B key socket for 3G/ 4G option with USIM support
Ports & Schnittstellen
LAN-Anschlüsse
4
Serielle Schnittstellen
4
USB 3.x-Anschlüsse
4
Externe I/O
LAN
4x Gigabit Ethernet ports by Intel® I350-AM4 controller (With PoE+)
Serial
1x Software-programmable RS-232/422/485 ports (COM1)
3x 3-wire RS-232 ports (COM2/COM3/COM4) or 1x RS-422/485 port (COM2)
USB
4x USB 3.1 Gen1 ports with screw-lock CAN Bus
1x isolated CAN 2.0 port
Isolated DIO
1x 4x isolated DI and 4x isolated DO
PoE verfügbar
Ja
PoE-Leistung
4x IEEE 802.3at Gigabit PoE+ ports by Intel® I350-AM4
