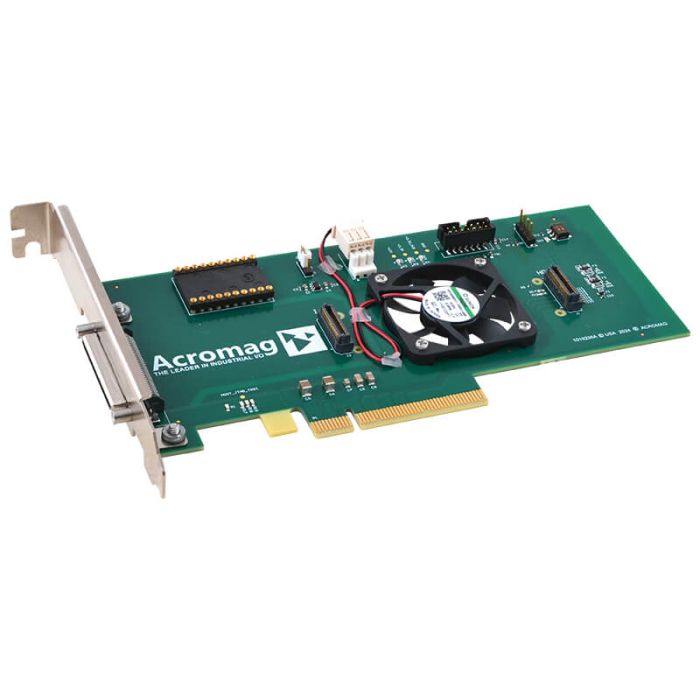

QMC Carrier card, 1xQMC slot, half-length, VITA 93 QMC

SKU:
QPCE7211-1111
Fabrikant:
Acromag
  • Bus-Typ : PCIe
  • Steckkartentyp : PCIe
QMC Carrier card, 1xQMC slot, half-length, VITA 93 QMC
Lieferzeit auf Anfrage - Preis auf Anfrage
Details
Weitere Informationen
Downloads
Weitere Informationen
  • Wesentliche Merkmale
    HauptmerkmaleFeatures
    • Half-length PCIe expansion card ideal for use with compact, rugged servers and workstations
    • One QMC mezzanine site
    • PCI Express Gen 3 x4 interface
    • Isolated QMC support
    • JTAG programming header
    • Cooling fan
    • Individually fused power
    • Resettable Positive Temperature Coefficient (PTC) fuse on each supply line
  • Ports & Schnittstellen
    Externe I/OCHAMP connector
    J5 (Carrier Field I/O): 68-pin 0.8mm CHAMP
    Interne I/OInternal connectors
    J1 (IO interface): QMC 80-pin male receptacle
    J2 (Host interface): QMC 80-pin male receptacle
    P1 (PCIe Bus): Eight lanes (only four used)
    P3 (I2C): 4-pin header
    P4 (JTAG): 14-pin header
  • Mechanische Spezifikation
    Bus-TypPCIe
    Abmessungen167.64mm (L) x 76.20mm (W) x 20.32mm (H)
    SteckkartentypPCIe
  • Umgebungsbedingungen
    Lagertemperatur-55°C/+125°C
    Betriebstemperatur-10°c/+70°c
    Relative Luftfeuchtigkeit5% to 95% non-condensing
  • Software Support
    BetriebssystemWindows, Linux, VxWorks
  • Allgemeine Daten
    HerstellerAcromag
    Gewährleistung24 Monate
