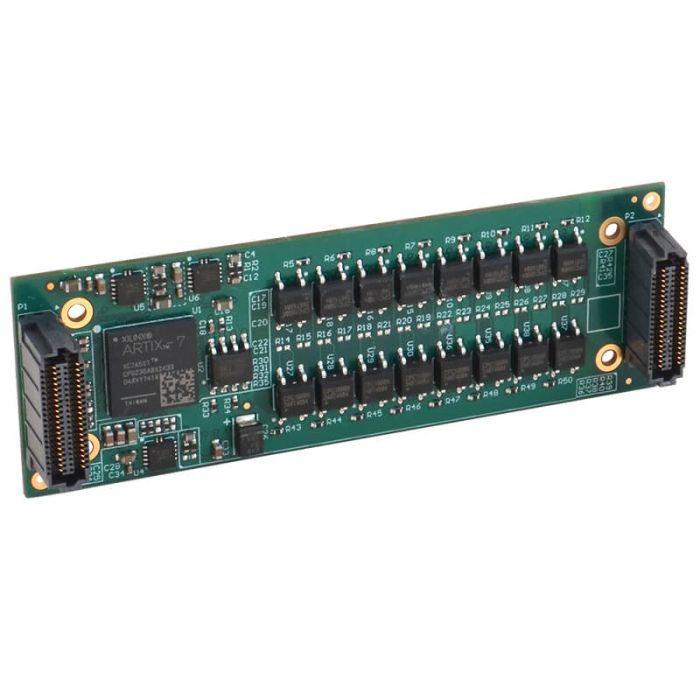

QMC Module 32x iso Digital Input ±60V AC/DC VITA 93 QMC air

SKU:

QMC451-1111

Fabrikant:

Acromag

Anzahl Schnittstellen : 32
I/O-Typ : Digital I/O
Bus-Typ : PCIe
Steckkartentyp : QMC

QMC Module 32x iso Digital Input ±60V AC/DC VITA 93 QMC air

Lieferzeit auf Anfrage - Preis auf Anfrage

Zur Vergleichsliste hinzufügen

Details

Weitere Informationen

Downloads

Weitere Informationen

Wesentliche Merkmale

Hauptmerkmale

Features
• 32 bipolar solid-state relays
• Port-isolated output channels
• ±60V AC/DC voltage range
• Unique ground reference points for each port permits AC and DC switching
• High-side or low-side switch configuration
• TTL-compatible with pull-up resistors
• High speed processing
• Failsafe power-up and system reset
• Output readback function
• Software configured (no jumpers/switches) allowing “on-the-fly” changes without removing modules
• Pins are compatible with QMC440 input module for loopback monitoring
• Extended temperature range and support for conduction-cooled systems

Ports & Schnittstellen

Externe I/O	Output Channel Configuration 32x isolated bipolar solid-state SPST-NO relays. Supports AC and DC switching Isolation Individual solid-state relays provide isolation. 4x groups (ports) of 8x channels, each with separate port commons, ensure port-to-port isolation. Individual ports are isolated from each other and from the PCIe interface logic. Output lines of an individual port share a common connection and are not isolated from each other.
Interne I/O	VITA 93 connector 2x high-performance 80-pin connectors provide separate field I/O and PCIe bus host interfaces
Anzahl Schnittstellen	32
I/O-Typ	Digital I/O

Mechanische Spezifikation

Bus-Typ PCIe
Abmessungen 78.25mm (L) x 26.00mm (W) x 11.00mm (H)
Steckkartentyp QMC
Umgebungsbedingungen

Lagertemperatur -55°C/+125°C
Betriebstemperatur 0°C/+70°C
Relative Luftfeuchtigkeit 5% to 95% non-condensing
Software Support

Betriebssystem Windows, Linux, VxWorks
Allgemeine Daten

Hersteller Acromag
Gewährleistung 24 Monate

Downloads

Datenblatt	QMC450-Isolated-Digital-Output-Module-Air-or-Conduction-Cooled.pdf
