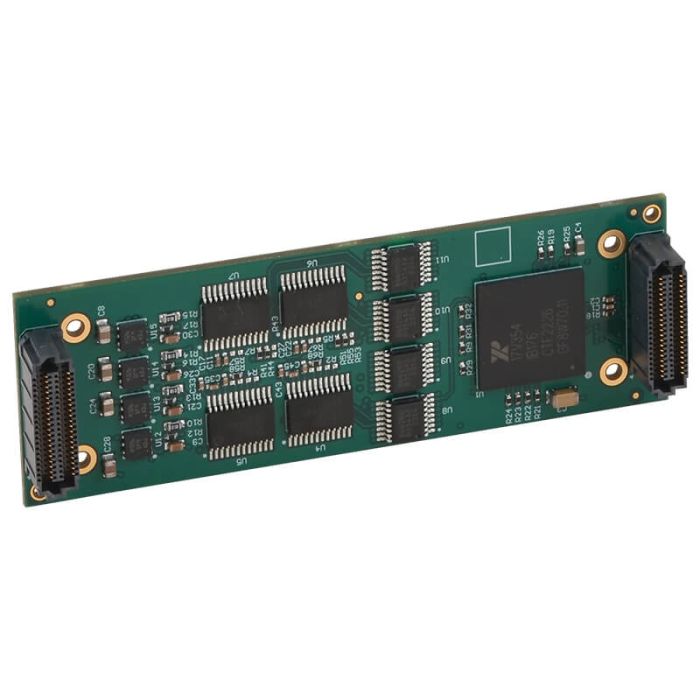

QMC Module 4x232/422/485 Async Serial VITA 93 QMC air-cool

SKU:

QMC521-1111

Fabrikant:

Acromag

Anzahl Schnittstellen : 4
I/O-Typ : Seriell
Bus-Typ : PCIe
Steckkartentyp : QMC

QMC Module 4x232/422/485 Async Serial VITA 93 QMC air-cool

Lieferzeit auf Anfrage - Preis auf Anfrage

Zur Vergleichsliste hinzufügen

Details

Weitere Informationen

Downloads

Weitere Informationen

Wesentliche Merkmale

Hauptmerkmale

Features
• Four (quad) isolated asynchronous serial communication ports
• Each port isolated (250V) from digital circuitry and (100V) from the other ports
• Each port programmable for EIA/TIA-232-F, EIATIA-422B, or EIA-485
• Full/half-duplex EIA-485 line support
• 16550-compatible register set
• 256-byte transmit and receive FIFO buffers with programmable trigger levels
• Programmable baud rate (up to 20Mbps)
• Individually controlled transmit, receive, line status, and data set interrupts
• General-purpose 16-bit timer/counter
• Extended temperature range and support for conduction-cooled systems

Ports & Schnittstellen

Externe I/O	Serial 4x independent, isolated serial ports (RS-232/422/485) with separate port commons
Interne I/O	VITA 93 connector 2x high-performance 80-pin connectors provide separate field I/O and PCIe bus host interfaces
Anzahl Schnittstellen	4
I/O-Typ	Seriell

Mechanische Spezifikation

Bus-Typ PCIe
Abmessungen 78.25mm (L) x 26.00mm (W) x 11.00mm (H)
Steckkartentyp QMC
Umgebungsbedingungen

Lagertemperatur -55°C/+125°C
Betriebstemperatur 0°C/+70°C
Relative Luftfeuchtigkeit 5% to 95% non-condensing
Allgemeine Daten

Hersteller Acromag
Gewährleistung 24 Monate

Downloads

Datenblatt	QMC520_Quad-Isolated-Serial-Communication-Module_Air-or-Conduction-Cooled.pdf
