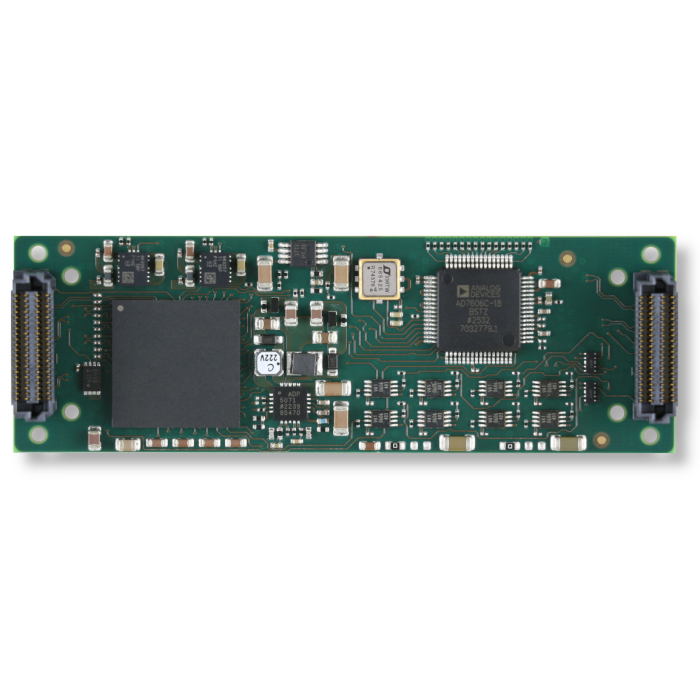

Reconfig. FPGA 16xTTL I/O 8xAD 4xDA QMC air-cooled

SKU:

TQMC700-10R-A

Fabrikant:

Tews

Anzahl Schnittstellen : 16+8+8
I/O-Typ : TTL & ADC & DAC
Bus-Typ : PCIe
Steckkartentyp : QMC

Reconfig. FPGA 16xTTL I/O 8xAD 4xDA QMC air-cooled

Lieferzeit auf Anfrage - Preis auf Anfrage

Zur Vergleichsliste hinzufügen

Details

Weitere Informationen

Wesentliche Merkmale

Hauptmerkmale

Features
• Standard single-width QMC module conforming to VITA93.0
• User programmable FPGA module, Artix 7 XC7A50T FPGA
• 16x TTL lines - techn. specifications:
- 5V tolerant
- ESD-protected
- Each I/O line is individually configurable
- three output states (high, low, tristate)
• 8x channels / 18-Bit ADC - techn. specifications:
- Offering single-ended and differential mode
- individually selectable voltage input ranges (up to ±12.5 V)
- Sampling rate up to 1 Msps
• 8x channels / 16-Bit DAC - techn. specifications:
- individually selectable voltage outputs (up to ±10.8 V)
- 10μs conversion time
• Factory correction data for ADC and DAC

Ports & Schnittstellen

Externe I/O	TTL - lines 16x TTL lines, 5V-tolerant, ESD protected 18-Bit ADC 8x channels, offering single-ended and differential mode Individually selectable voltage input ranges (up to ±12.5 V) Sampling rate up to 1 Msps 16-Bit DAC individually selectable voltage outputs (up to ±10.8 V) 10μs conversion time
Anzahl Schnittstellen	16+8+8
I/O-Typ	TTL & ADC & DAC

Mechanische Spezifikation

Bus-Typ PCIe
Abmessungen 26mm (W) x 78.25 mm (L)
Steckkartentyp QMC
Umgebungsbedingungen

Betriebstemperatur -40°C/+85°C
Allgemeine Daten

Hersteller Tews

Preis auf Anfrage
