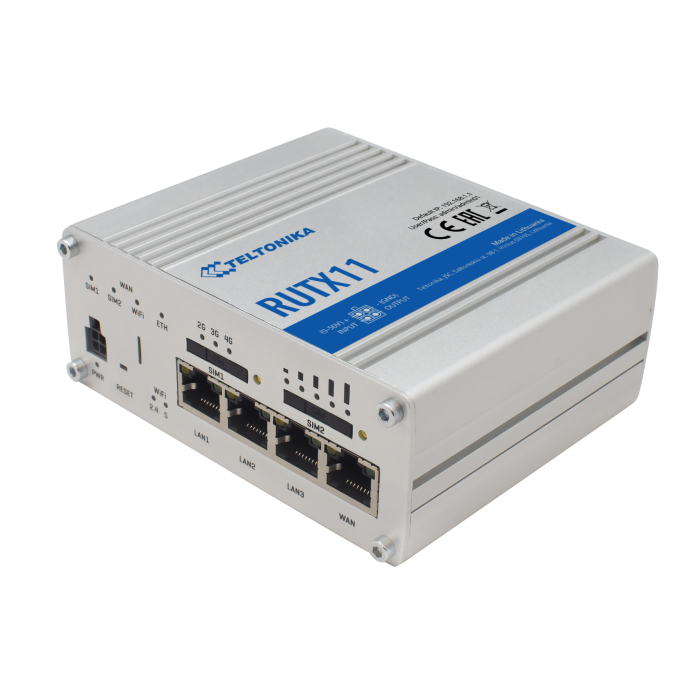

    main product photo

    Teltonika RUTX11 LTE CAT6 Router Dual-SIM 4xGLAN 802.11ac

    SKU:
    RUTX11000000
    Fabrikant:
    Teltonika
    • Region (operator) : Europe, the Middle East, Africa, Australia, APAC2, Brasil, Malaysia
    • Anwendung : IoT
    • Schaltertyp : Routers
    • WLAN : 5.0 GHz (b/g/n)
    • Mobilfunknetz : 3G, 4G (lte) cat6
    Auf Lager
    Zur Vergleichsliste hinzufügen
    Details
    Weitere Informationen
    Downloads
    Weitere Informationen
    • Prozessor
      Prozessor-TypARM
      Prozessor-SerieCortex A
      Taktfrequenz717 MHz
    • Arbeitsspeicher
      SpeichertypDDR3
      Max. Speicher256 MB
    • Wesentliche Merkmale
      Hauptmerkmale• LTE Cat 6 with speeds up to 300 Mbps
      • Wave-2 802.11ac Dual Band WiFi with speeds up to 867 Mbps
      • Dual-SIM with auto Failover, Backup WAN and other SW features
      • Gigabit Ethernet with speeds up to 1000 Mbps
      • Teltonika Remote Management System compatible
      • RutOS – easy to use, secure and feature rich Operating System
    • Ports & Schnittstellen
      SchaltertypRouters
      Mobilfunknetz3G, 4G (lte) cat6
      WLAN5.0 GHz (b/g/n)
      GNSSJa
      BluetoothBleutooth LE
      SMSYES
      LAN-Anschlüsse4
      USB 2.0-Anschlüsse1
      Externe I/O• 4 x RJ45 ports, 10/100/1000 Mbps
      • 1 Digital Input, 1 Digital Output on 4 pin power connector
      • 3 x connection status LEDs, 5 x connection strength LEDs, 8 x LAN status LEDs, 3 x WAN status LEDs, 1 x Power LED
      • 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders
      • 2 x SMA for LTE, 2 x RP-SMA for WiFi, 1 x RP-SMA for Bluetooth, 1 x SMA for GNNS
      • USB A port for external devices
      PoE verfügbarJa
      PoE-Leistung• Passive PoE: Possibility to power up through LAN port, not compatible with IEEE 802.3af and 802.3at standards
      Verschlüsselungssicherheit• OpenVPN: Multiple clients and a server can run simultaneously, 12 encryption methods
      • OpenVPN Encryption: DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
      • IPsec: IKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256)
      • GRE: GRE tunnel
      •PPTP, L2TP: Client/Server services can run simultaneously
      • Stunnel (planed): Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
      • DMVPN: Method of building scalable IPsec VPNs
      • SSTP: SSTP client instance support
      WLAN-Sicherheit• Authetication: Pre-shared key, digital certificates, X.509 certificates
      • Firewall: Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
      • Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
      • VLAN: Port based and tag based VLAN separation
      • Mobile quota control: Set up custom data limits for both SIM cards
      • WEB filter: Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only
      • Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter
    • Speicher
      Speicherkapazität256 MB SPI Flash
    • Mechanische Spezifikation
      GehäusetypDIN-Rail
      Abmessungen115 mm x 95 mm x 44 mm (H x W x D)
      Montage• DIN rail (can be mounted on two sides), flat surface placement
    • Produkt Merkmale
      Gewicht456 g
    • Elektrische Spezifikation
      Eingangsbereich9 – 50 VDC, reverse polarity protection, voltage surge/transient protection
      Leistungsaufnahme11 W Max
    • Umgebungsbedingungen
      Betriebstemperatur-40°C/+75°C
      Relative Luftfeuchtigkeit10 % to 90 % non-condensing
    • Zertifizierung
      NormenREGULATORY & TYPE APPROVALS
      Regulatory & Type Approvals: CE/RED, RoHS, REACH

      EMI IMMUNITY
      • Standards: EN 55032:2015, EN 55035:2017, Draft ETSI EN 301 489-1 V2.2.1, ETSI EN 301 489-3 V2.1.1, Draft ETSI EN 301 489-17 V3.2.0

      • ESD: EN 61000-4-2:2009
      • RS: EN 61000-4-3:2006+A1:2008+A2:2010
      • EFT: EN 61000-4-4:2012
      • Surge protection: EN 61000-4-5:2014
      • CS: EN 61000-4-6:2014
      • DIP: EN 61000-4-11:2004

      RF
      • Standards: ETSI EN 300 328 V2.1.1, ETSI EN 301 893 V2.1.1, ETSI EN 300 440 V2.1.1

      SAFETY
      • Standards: IEC 62368-1:2014 (Second Edition) EN 62368-1:2014+A11:2017 EN 50385:2017 EN 62232:2017
    • Software Support
      BetriebssystemRutOS (OpenWrt based Linux OS)
    • Allgemeine Daten
      HerstellerTeltonika
      EAN Code4779027312378
      AnwendungIoT
      Gewährleistung24 Monate
      Region (operator)Europe, the Middle East, Africa, Australia, APAC2, Brasil, Malaysia
    Downloads
  • DatenblattDatasheet-RUTX11-v1.5.pdf
    		•
