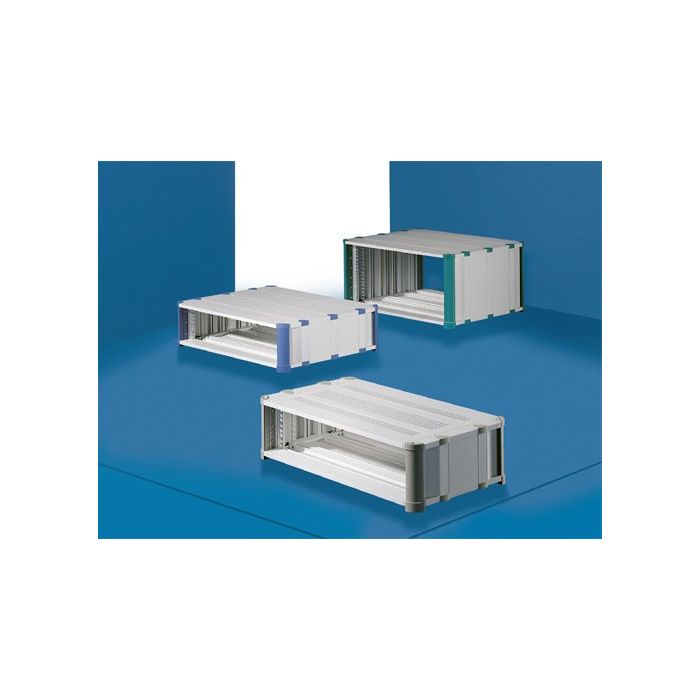

HeiCase solid RAL5012 6U/19"/300mm

SKU:
3750602
Fabrikant:
HEITEC AG
Lieferzeit auf Anfrage - Preis auf Anfrage
Details
Weitere Informationen
Downloads
Weitere Informationen
  • Produkt Merkmale
    ProduktfamilieHeiCase
    ProduktgruppeHeiCase 482,6 mm (19'')
    Breite (mm)482,6 mm (19")
    Tiefe der Seitenwand300 mm
    GrifflochNein
    Allgemeine ProduktinformationenTechnical specifications:

    Depth: 300 mm, 420mm, 540 mm
    nstallation width: 482,6 mm (19 ̋ )
    Installation options: 482,6 mm (19 ̋ )-slide-in equipment to IEC 60 297-3

    Protection category:

    P 42 for unvented version

    Supply includes:

    2 side panels
    2 covers
    8 corner caps
    8/12/16 cover caps (300/420/540 mm depth)
    4 19" mounting brackets
    4 threaded inserts
    2 plain inserts
    Cases are supplied preassembled

    Note:

    For rear installation, order back panel/door separately.

    Colour:RAL 7035 (pale grey)

    Decorative colours and corner caps:

    RAL 5018 (turquoise)
    RAL 5012 (pale blue)
    RAL 7030 (stone grey)

    Material/surface finish:

    Covers: Extruded aluminium section/die-cast, spray-finished
    Side panels: Extruded aluminium section, spray-finished
    Corner caps: Plastic
    (19 ̋ ) mounting bracket: Extruded aluminium section, clear-chromated

    Property rights:

    German registered design no. 96 09 457
    UK reg. design no. 2064682
    US design patents
    Des. 402,640 and Des. 423,464
    Japan. reg. designs no. 1045507 and 1045508
    Gewicht7.3 kg
